Coaxial Components
up to 110 GHz

Finden Sie hier eine Auswahl an Lösungen für koaxiale Komponenten aus unserem vielseitigen Portfolio.

Jetzt Beratung anfordern

Adapters

  • up to 110 GHz available in Straight, Right Angle, Bulkhead & Panel versions

  • Connectors: 1mm, 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm, SMA, N, TNC, BNC, SC, 7/16, 4.3/10, C, F, FME, BMA, BMC, FME, HN, MCX, MHV, MMCX, SHV, SMM, SMC, SMS, SSMA, SSMB, UHF, Reverse Polarity versions

Amplifiers

Coaxial Amplifiers up to 110 GHz

  • Cryogenic Amplifiers

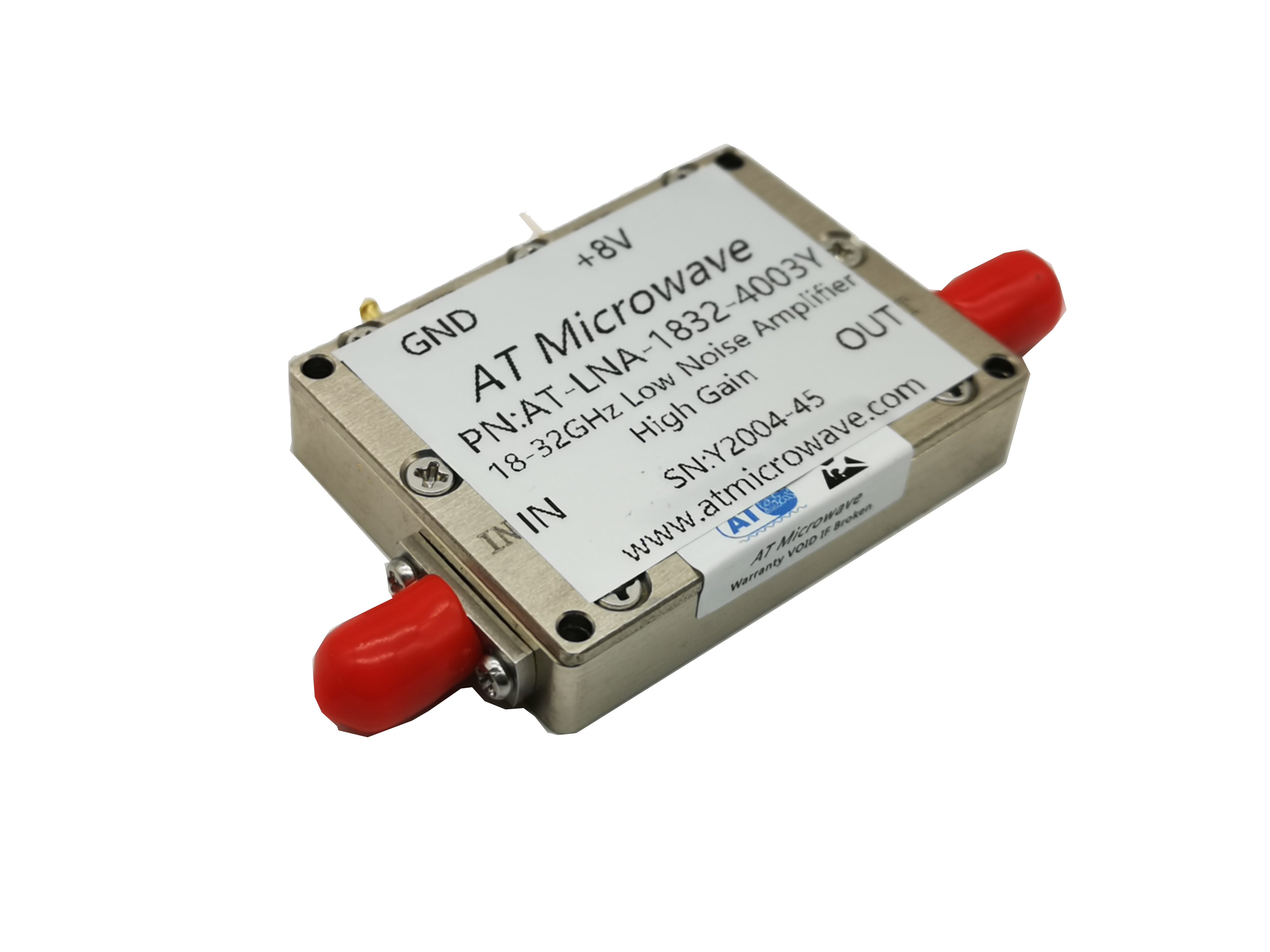

  • Low Noise Amplifiers

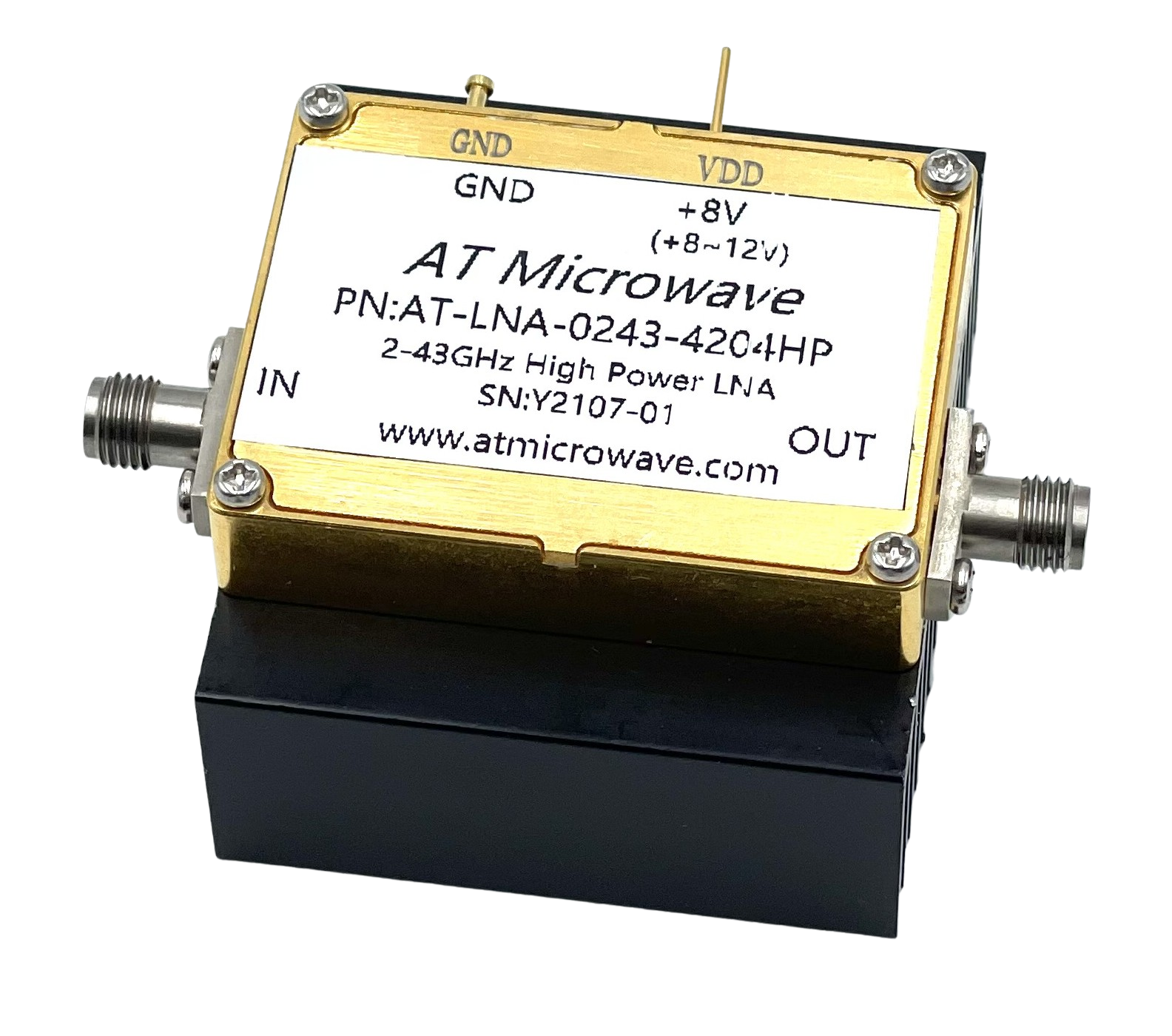

  • Power Amplifiers

  • Multi-Octave Band Amplifiers

  • Wideband Amplifiers

  • Super Low Noise Amplifiers

  • Input Protected Low Noise Amplifiers

  • Gain Block Amplifiers

Attenuators

  • Fixed Attenuators | DC-110 GHz, 0,2 Watt to 10kW, 0-60dB

  • Cryogenic Attenuators | DC-65 GHz, 2W, 0-60dB

  • Rotarry Stepped Attenuators | DC-40 GHz, up to 25W, 0-101dB

  • Continuously Variable Attenuators | DC-18 GHz, up to 300W, 0-40dB

  • USB Digital Attenuators | DC-40 GHz, 0-120dB

Bias Tees

Bias Tees from 1 KHz to 85 GHz

  • High Current versions up to 10A

  • High DC Voltage >1.5KV

  • Low cost custom solutions available with fast lead time

Cables Assemblies

Cable Assemblies up to 110 GHz in different configurations available, short lead time, no minimum order quantities

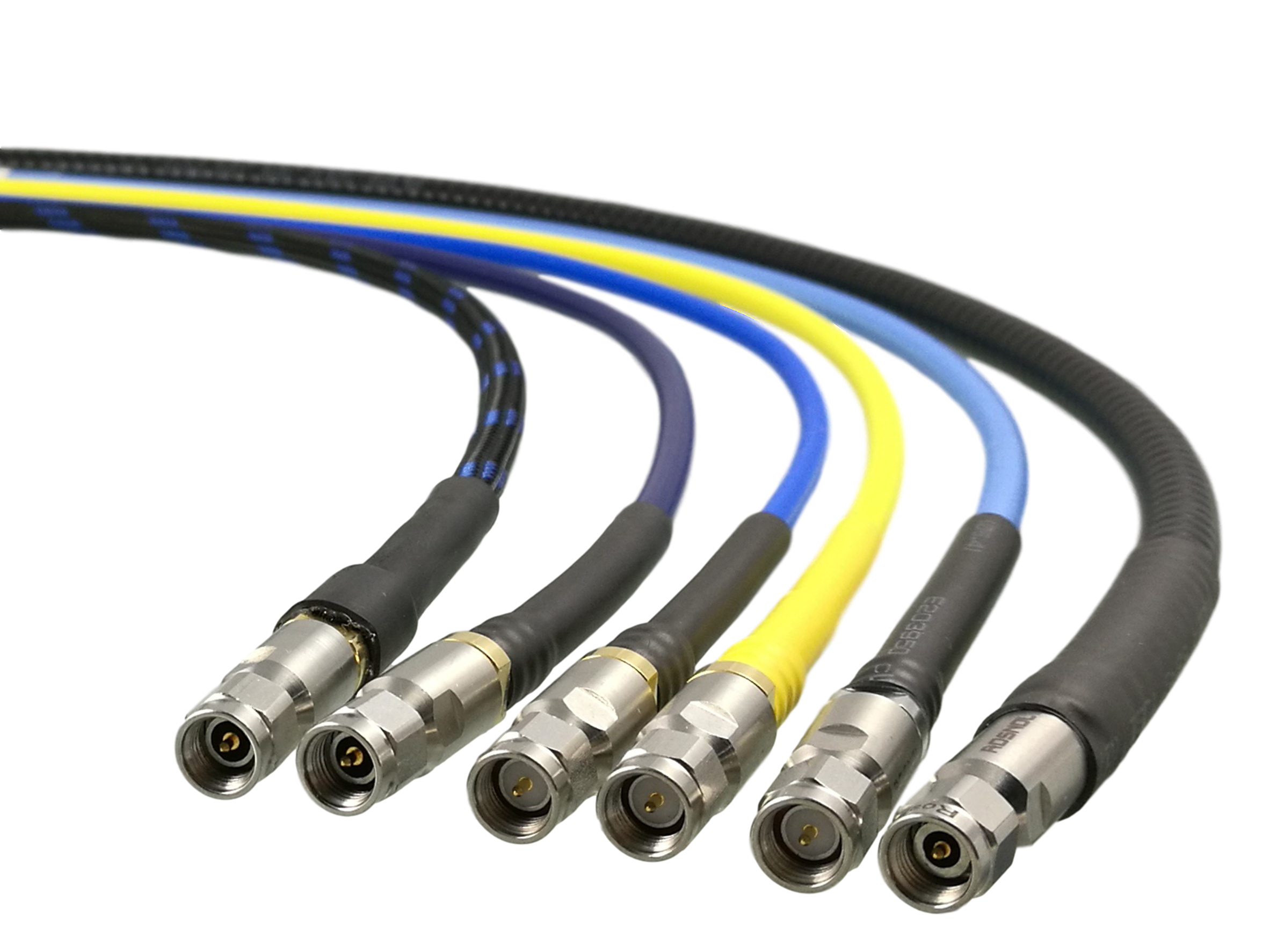

  • High Performance Test Cable Assemblies to 110 GHz

  • Semi Rigid Cables up to 110 GHz

  • Economincal Test Cable Assemblies to 18 GHz

  • Ultra-Flexible Test Cable Assemblies to 26.5 GHz

  • VNA Test Cable Assemblies to 67 GHz

  • Ultra Low Loss & Phase Stable, Flexible Cables to 110 GHz

  • Stable Loss, VSWR, Phase vs Flexing, Flexible Cables to 8GHz

  • Ultra-Flexible Cables to 40 GHz

  • Low Loss, Flexible Cables to 18 GHz

  • High Weatherability, Low Loss, Flexible Cables to 18 GHz

  • Low Loss Wireless Communication Cables to 5.8 GHz

  • Flexible, Alternative to Semirigid Cables to 40 GHz

  • Low VSWR and PIM, Semirigid Cables to 40 GHz

  • Hand Formable, Semiflex Cables to 40 GHz

  • RF Cable Armors

Circulators

  • Coaxial Circulators up to 40 GHz

  • Dual Junction Circulators up to 40 GHz

  • Drop In Circulators up to 40 GHz

  • SMT Circulators up to 15 GHz

Connectors

  • End Launch Connectors up to 110 GHz

  • PCB Connectors up to 67 GHz

  • Feedthrough Pins DC-67 GHz

1.0mm, 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm, SSMA, SMA, N, TNC, SC, 7/16, BMA, SMB, SMC, SMS, SSMB, BNC, SMP, MCX, MMCX, 1.0-2.3, 1.6-5.6, 4.3-10, C, HN, MHV, SHV, F, FME, UHV, Reverse Polarity versions

Couplers

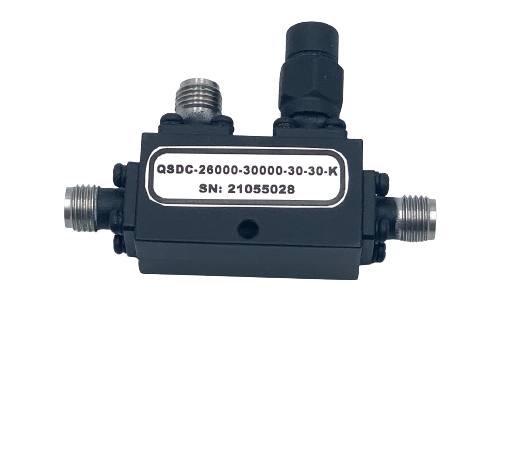

  • Directional Couplers up to 67 GHz (up to 500W)

  • Dual Directional Couplers up to 67 GHz (up to 1500W)

  • 3dB Hybrid Couplers up to 40 GHz (90 & 180 deg.)

DC-Blocks

  • DC-Blocks up to 110 GHz

  • High Voltage and High Power up to 100W

Detectors

  • Detectors up to 40 GHz

Equalizer

  • Fixed Equalizers up to 40 GHz in positive & negative slope

Filters

  • Bandpass Filters up to 67 GHz

  • High Pass Filters up to 67 GHz

  • Low Pass Filters up to 40 GHz

  • Band Reject Filters up to 18 GHz

  • Diplexer / Multiplexer up to 40 GHz

  • Custom solutions

Frequency Multiplier

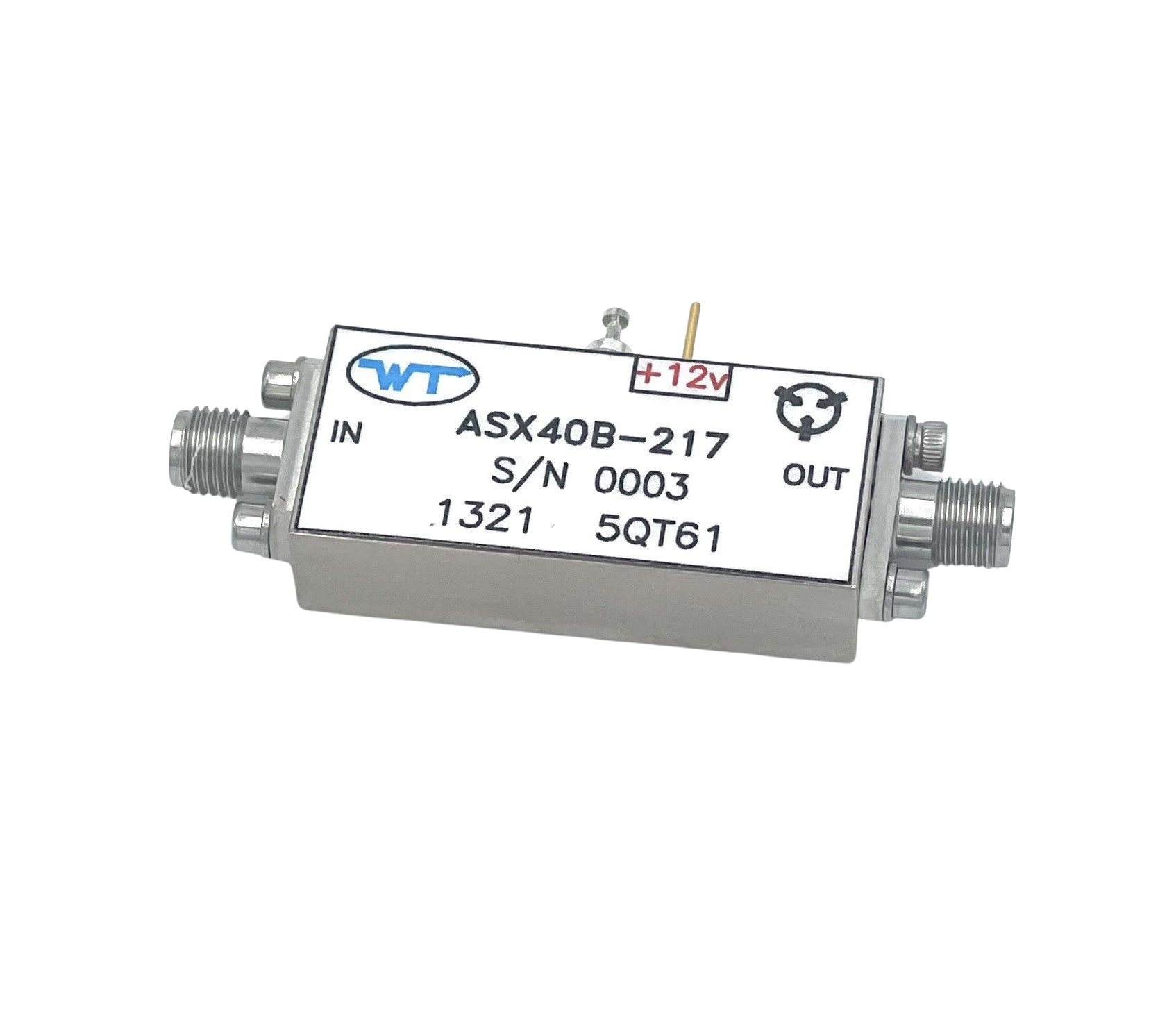

  • Doublers up to 67 GHz

  • Triplers up to 67 GHz

  • Quadruplers up to 67 GHz

Isolators

  • Coaxial Isolators up to 40 GHz

  • Dual Junction Isolators up to 40 GHz

  • Drop In Isolators up to 40 GHz

  • SMT Isolators up to 15 GHz

Limiters

  • Limiter up to 40 GHz with low insertion loss, small size and high reliability

Mixers

  • Mixer up to 67 GHz

Double Balanced, Tripple Balanced & Image Reject version available

Modulators / Demodulators

  • IQ Modulators up to 6 GHz

  • IQ Demodulators up to 6 GHz

Oscillators / Noise Source

Phase Lock Oscillators up to 40 GHz

  • Single Loop & Dual Loop

  • High Power > 17dBm

  • Ultra low Phase Noise

  • Internal & External reference from 50-300 MHz

Phase Shifters

  • Manual Phase Shifters up to 40 GHz

  • Digital USB Phase Shifter up to 12 GHz

  • Analog & Digital Phase Shifters up to 40 GHz

Power Divider / Combiner

  • Power Dividers up to 67 GHz (2-32 Way)

  • Resistive Power Divider up to 67 GHz

Power Meters

  • Power Meters up to 18 GHz with power levels 0.1uW~100mW

  • USB controlled Power Meters up to 18 GHz

Signal Generators

  • USB Signal Generators up to 40 GHz

Switches

  • Pin Diode Switches up to 70 GHz (SPST to SP32T)

  • Mechanical Switches DC-50 GHz (SPST-SP18T)

  • High Power Switches DC-12 GHz (N, SC & 7/16)

  • USB Controlled Switches up to 10 GHz (SPDT & SP4T)

Synthesizer

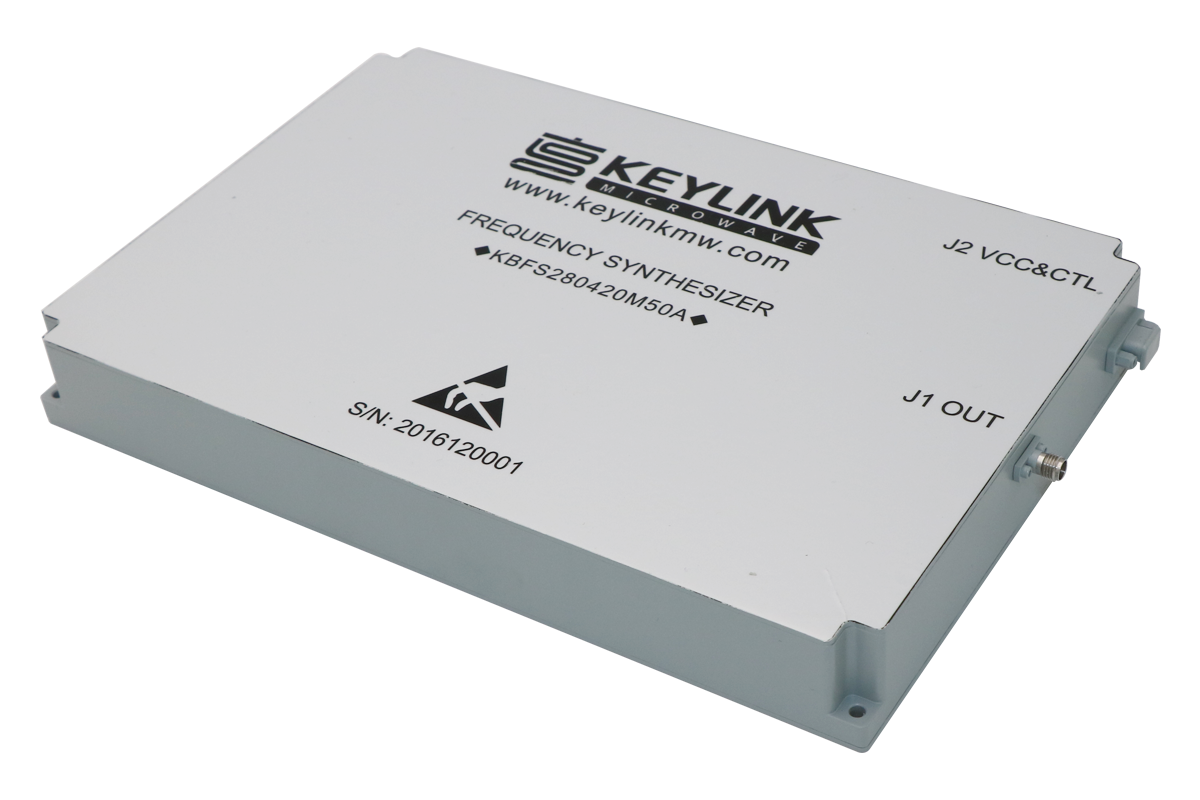

  • Synthesizers up to 42 GHz

  • Multi Channel & custom solution

Terminations

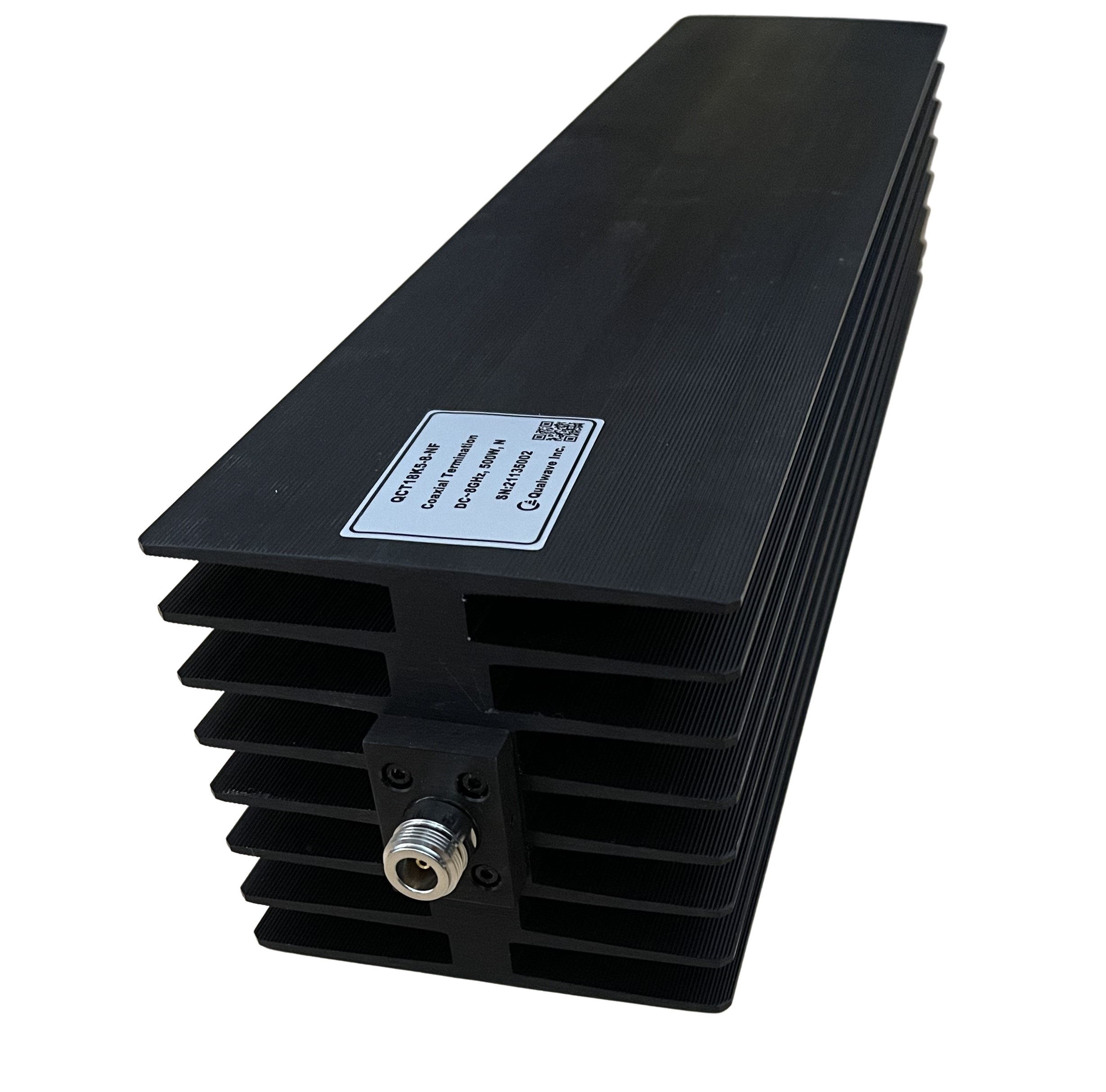

  • Fixed Terminations DC-67 GHz | 0.5W-10kW power

  • Cryogenic Terminations DC-18 GHz

Torque Wrenches / Tools

  • Torque Wrenches for all different connectors

Up/Down converters

  • Up/Down converters up to 40 GHz

Voltage Control Oscillators

  • Voltage Control Oscillators up to 70 GHz

  • Broadband VCO’s

  • High Power VCO’s

Unser Hersteller-Portfolio für Coxial Komponenten

Wir arbeiten mit hochqualifizierten, internationalen Herstellern von Coaxial Components zusammen für Ihre bedarfsorientierte und kosteneffiziente Lösung.

Jetzt Linecard öffnen
