Waveguide Components
up to 750 GHz

Find here a selection of solutions for waveguide components from our versatile portfolio.

Adapters

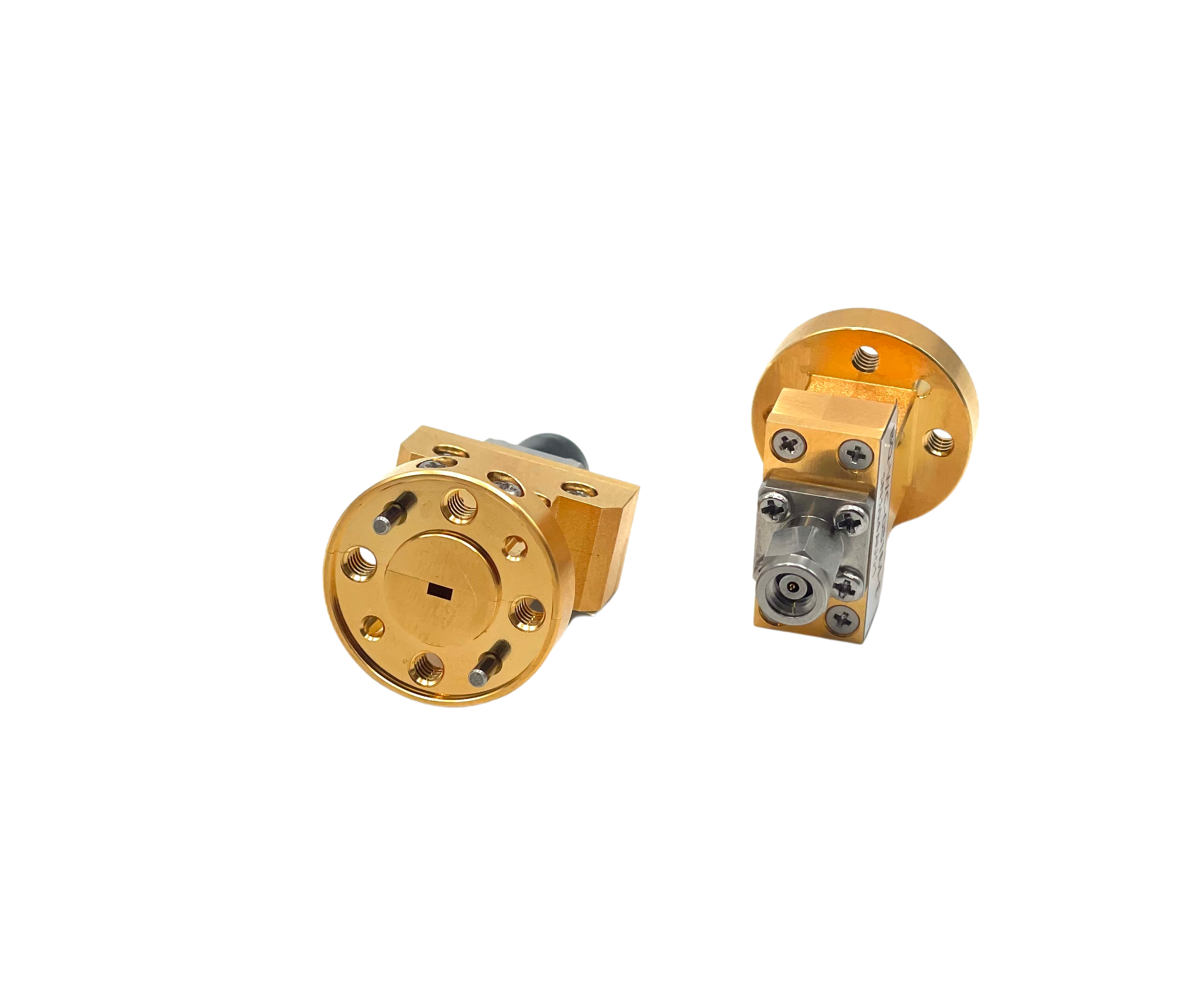

  • Waveguide to Coax Adapters WR2300-WR10

  • End Launch Adapters

  • Double Ridged Adapters

  • Right Angle Adapters

  • Microstrip Adapters

  • Elliptical to Rectangular Adapters

  • Circular to Waveguide Adapters

Amplifiers

Waveguide Amplifiers up to 270 GHz

  • LNA’s & PA’s for U-Band, V-Band, E-Band, W-Band, F-Band, D-band, H-band, J-band

  • Low Noise Amplifier & Power Amplifier from WR22 to WR3

Antennas

  • Standard Gain Horn Antennas up to 750 GHz from WR2300-WR1.5

  • Wideband Horn Antennas 200 MHz-40 GHz

  • Conical Horn Lens Antennas

  • Circulary Polarized Horn Antennas up to 40 GHz

  • Omni Directional Antennas for MMDS transmitting Systems

Attenuators

  • Fixed & Variable Attenuators up to 325 GHz (WR28-WR3)

  • Voltage Variable Attenuators up to 110 GHz (WR19-WR10)

  • Direct Reading Attenuators up to 325 GHz

Bends

Waveguide Bends up to 500 GHz

  • E-Plane (WR430-WR2)

  • H-Plane (WR430-WR2)

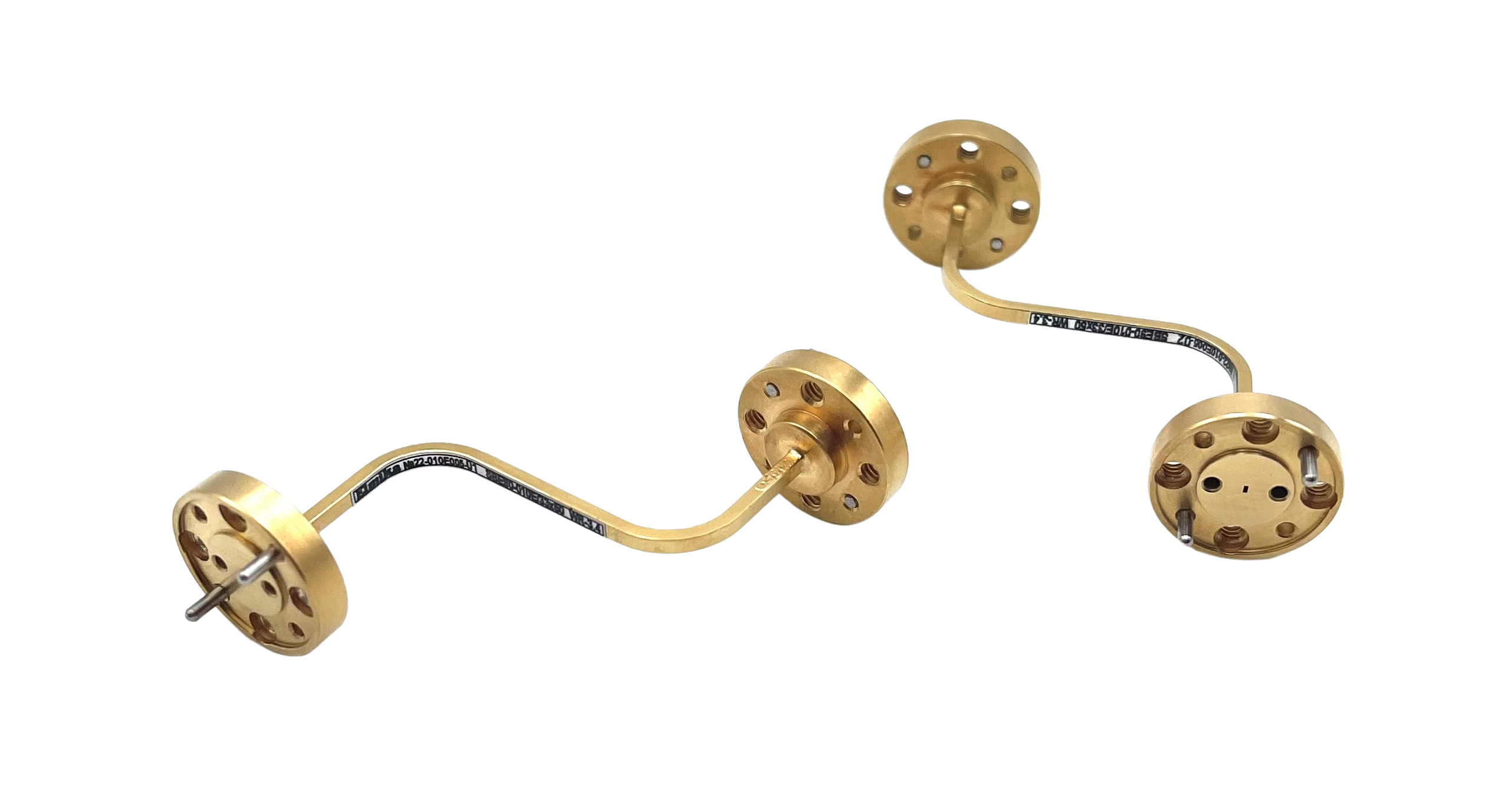

  • S-Bends (WR430-WR2)

Circulators

Waveguide Circulators up to 170 GHz from WR650 to WR6

  • Low Power & High Power, Fullband available

Couplers

  • Directional Coupler up to 325 GHz (WR28-WR3)

  • Broadwall Couplers (WR650-WR28)

  • Crossgiude Couplers (WR430-WR28)

  • Single & Dual Directional Loop Coupler (WR650-WR90)

Detector Mounts

  • Detectors up to 325 GHz (WR22-WR3)

Diplexer

  • Waveguide Diplexer from WR430-WR75

Flexible & Twistable Waveguide

  • Flexible & Twistable Waveguide (WR284-WR28)

  • Flexible Seamless Waveguide (WR770-WR28)

  • Flexible Double Ridged Waveguide

Filters

Waveguide Filters up to 400 GHz

  • Bandpass Filters

  • Highpass Filters

  • Low Pass Filters

Gasket

Waveguide Gasket from WR650-WR28

  • Rectangular

  • Circular

Isolators

Waveguide Isolators up to 170 GHz

  • Low Power & High Power, Fullband available

Magic Tees

Magic Tees up tp 325 GHz –  WR2300 to WR3

  • E-Plane Tees

  • H-Plane Tees

Mixer & IQ Mixer

Waveguide Mixer up to 220 GHz (WR22-WR4.3)

  • Waveguide Mixer up to 220 GHz (WR22-WR4.3)

  • Waveguide IQ Mixer up to 170 GHz (WR22-WR6)

Multipliers

Waveguide Multipliers up to 350 GHz (WR22-WR2.8)

  • for Q-Band, U-Band, V-Band, E-Band, W-Band, F-Band, D-Band & H-Band and more

  • Active & Passive Multiplier X2, X4, X6, X8 X12 x24 version

Near Field Probes

  • Waveguide Near Field Probes up to 325 GHz (WR1000-WR3)

Oscillators (PLDRO’s)

Waveguide Phased Locked Dielectric Resonator Oscillators (PLDRO’s) up to 220 GHz

  • From WR19 to WR4

Polarizers

  • Waveguide Polarizer up to 325 GHz

  • Rectangular to Linear Waveguide Polarizer

  • Linear to Circular Waveguide Polarizer

Power Dividers

  • Waveguide Divider up to 40 GHz (WR340-WR28)

Rotary Joints

Rotary Joints up to 40 GHz (WR284-WR28)

  • Single Channel Rotary Joints

  • Dual Channel Rotary Joints

Shims

  • Flange Shims and Pressure Windows up to 110 GHz (WR2300-WR10)

Shorts

  • Waveguide Shorts up to 225 GHz (WR2300-WR5)

Straights

  • Straight Waveguide up to 750 GHz (WR2300-WR1.5)

  • Circular Straight Waveguides

Switches

  • Waveguide Switches up to 260 GHz (WR4 – WR975)

  • Waveguide MMIC based Switch up to 260 GHz (WR22-WR4)

  • Double Ridge Waveguide Switches up to 18 GHz (WRD110 to WRD750)

  • Dual Waveguide Switches up to 33 GHz (WR34 to WR229)

Terminations

Waveguide Terminations up to 500 GHz (WR2300-WR2.2)

  • Low Power Terminations

  • Medium Power Terminations

  • High Power Terminations

Three Stub Tuner

Waveguide Three Stub Tuners (WR650-WR28)

  • Three Stub Tuners up to 40 GHz

Transitions

Waveguide Transitions up to 325 GHz (WR510-WR3)

  • Rectangular to Rectangular Transitions

  • Rectangular to Circular Transitions

Twists

Twistable Waveguides up to 750 GHz (WR430-WR1.5)

  • 45° & 90° version

  • custom version available

Tx Rx Modules / Converter (Both TX/RX)

  • Tx Rx Waveguide Modules up to 230 GHz (WR15-WR4)

  • Converter Modules (both Tx Rx) up to 330 GHz (WR22-WR3)

Our manufacturer portfolio for high frequency and millimeter wave components

We cooperate with various highly qualified international manufacturers to provide you with a demand-oriented and cost-efficient solution.
