News von bq-microwave

Coaxial Switches DC-50 GHz Coaxial Switches DC-50 GHz SPST-SP18T low cost, fast lead tim High Power versions available feel free to send us your requested switch configurations. Alle Infos als PDF herunterladen →

Waveguide Filters up to 400 GHz Waveguide Filters up to 400 GHz from WR22 to WR2 Waveguide Bandpass Filters Waveguide Lowpass Filters Waveguide Highpass Filters custom designs available many stock items Alle Infos als →

Coaxial Adapter DC-110 GHz Coaxial Adapter DC-110 GHz Frequency: DC-110GHz VSWR: 1.35 max. Insertion Loss: 0.6dB max. Impedance: 50Ω Connectors: 1mm male & female Low cost, fast lead times Alle Infos als PDF herunterladen →

Hybrid Couplers up to 40 GHz Hybrid Couplers up to 40 GHz 90 & 180 degree Hybrid Couplers Frequency Range up to 40 GHz customized on request  Alle Infos als PDF herunterladen →

Waveguide Termination Loads up to 325 GHz Waveguide Termination Loads up to 325 GHz From WR2300 to WR3 Low Power version Medium Power version High Power version >15kW for under frequency ranges Alle Infos →

WR12 Waveguide to Coax Adapter 60-90 GHz WR12 Waveguide to Coax Adapter Frequency Range 60-90 GHz 1mm male / female connectors Right Angle & End Launch versions further Waveguide Adapter from WR2300 to WR10 →

Waveguide S-Bends up to 500 GHz Waveguide S-Bends up to 500 GHz Waveguide S-Bends from WR430 to WR2 Bend Type: E-Plane & H-Plane Flanged Waveguide Tube & Split Block customization upon request Alle Infos →

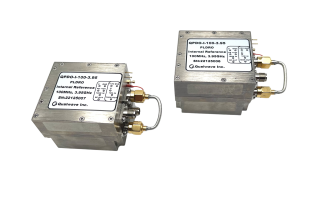

Phase Locked Oscillators up to 50 GHz / Waveguide PLDRO's up to 100 GHz Phase Locked Oscillators up to 50 GHz Internal & External Ref: 50-300 MHz Power up to +25dBm optional custom upon →

Cryogenic Attenuators up to 65 GHz Cryogenic Attenuators up to 65 GHz Frequency Range: DC-65 GHz Connectors: SMA, SMP, 2.92mm, 1.85mm Further Cryogenic components available Cryogenic Amplifiers Cryogenic Isolators / Circulators Cryogenic Adapters Cryogenic →

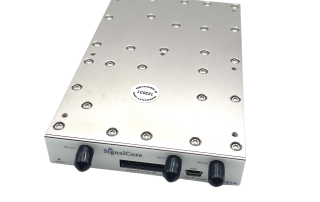

Signal Generators up to 40 GHz Signal Generators up to 40 GHz USB Broadband Signal Generator Frequency Range 160 MHz-40 GHz +15dBm Output Power Further Signal Generators with different Options available. Alle Infos als →

WR6 Waveguide Power Amplfiers 110-150 GHz WR6 Waveguide Power Amplfiers 110-150 GHz (D-Band) Frequency Range 110-150 GHz Model # 1: Gain: 18dB, Psat=+15dBm Model # 2: Gain: 35dB, Psat=+13dBm (by adding LNA as driver) →

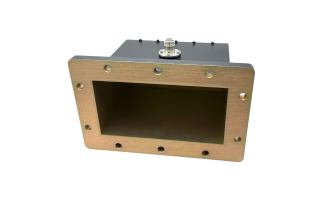

WR650 Waveguide to Coax Adapter 1.12-1.7 GHz WR650 Waveguide to Coax Adapter Frequency: 1.12-1.7 GHz Flange: FDP14 (Cover) = UDR84 Connector: N-female Low cost, fast lead time bq-microwave offer further Waveguide to Coax Adapters →
