AT Microwave AT-AM3-3050-20L Active Multiplier – available from bq-microwave

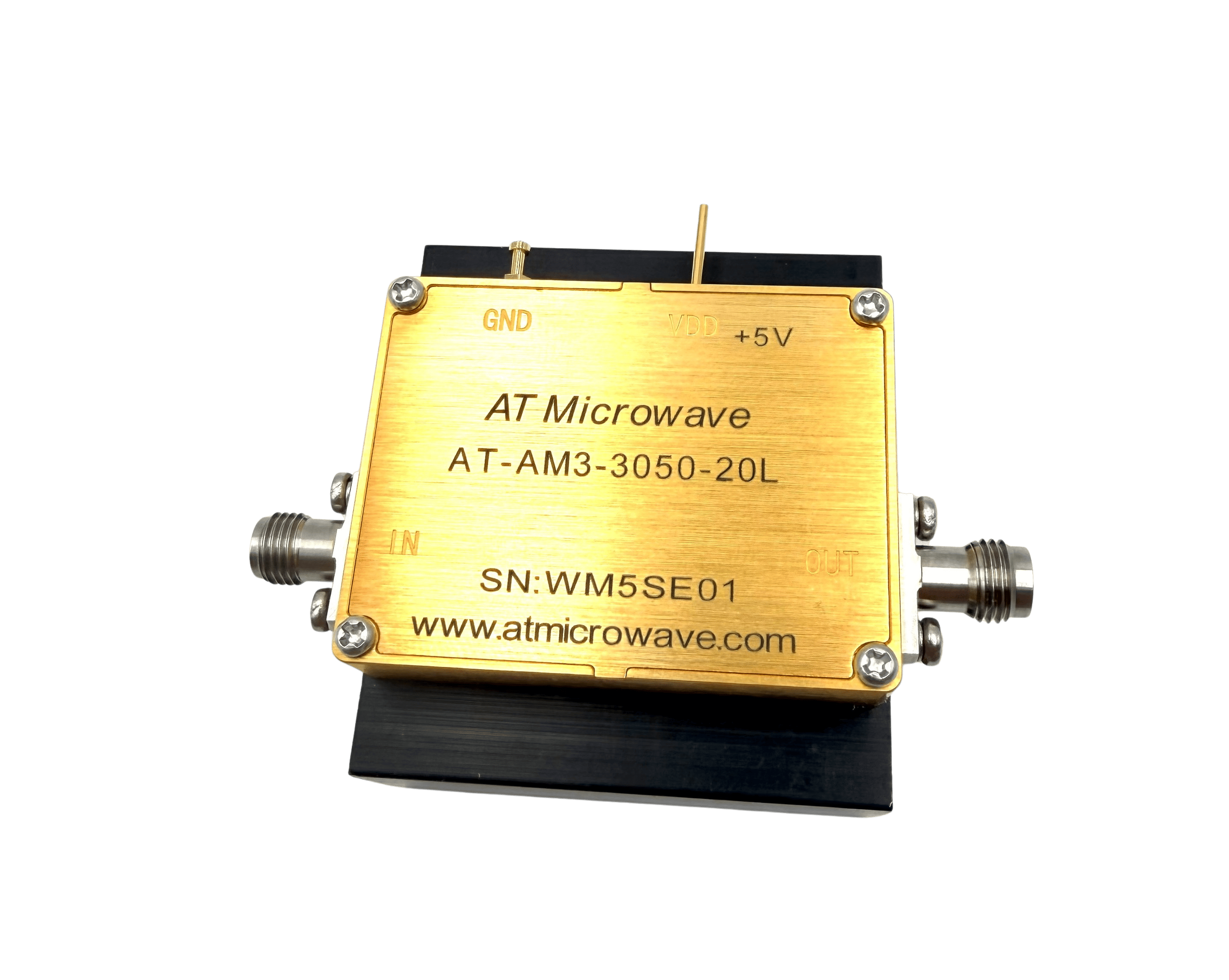

bq-microwave offers the AT-AM3-3050-20L, a broadband active frequency multiplier from AT Microwave. This x3 multiplier converts an input signal of 10–17 GHz into an output signal of 30–50 GHz, delivering a typical output power of +20 dBm across the full band.
What sets the AT-AM3-3050-20L apart
An active frequency multiplier generates a higher harmonic from a lower-frequency input signal – in this case the third harmonic. Unlike passive multipliers, the AT-AM3-3050-20L features integrated input and output buffers that deliver high output power even at a low drive level. The typical X2/X4 harmonic suppression of -20 dBc ensures a clean output spectrum.
RF performance
- Input frequency: 10–17 GHz
- Output frequency: 30–50 GHz
- Multiplication factor: x3
- Output power: +20 dBm typ. (+18 dBm min.)
- Input power: +0 to +8 dBm (+3 dBm typ.)
- X2/X4 harmonic suppression: -20 dBc
- Drain: +5 to +8 V, 500–800 mA
Mechanical and connectors
- Input: SMA female
- Output: 2.4 mm female
- Case material: copper, gold-plated
- Weight: 80 g (without heatsink)
- Operating temperature: -40 to +85 degrees C
- Heatsink required when case temperature exceeds 50 degrees C
Typical applications
- 28/39 GHz 5G communication
- Test and measurement
- RoF – RF over Fiber
- Radar systems
- mmWave signal sources
The AT-AM3-3050-20L at a glance
With an output range of 30–50 GHz, the AT-AM3-3050-20L covers Ka- and Q-band and is particularly suited to mmWave 5G setups. Its gold-plated copper construction and integrated buffers make it a compact, high-power signal source. Alternative port configurations are available on request.
Availability at bq-microwave
bq-microwave is a distributor for AT Microwave in Europe. The AT-AM3-3050-20L and further multipliers and active components are available at short notice. For quotations and technical advice, contact us at info@bq-microwave.de or +49 151 252 901 28.
