Question 1

Which waveguide sizes do you carry?

Accepted Answer

From WR-2300 (0.32–0.49 GHz) to WR-0.65 (1100–1700 GHz). All common WR standards in between are available – WR-430, WR-90, WR-42, WR-28, WR-15, WR-10, WR-5, WR-3, WR-2.2, WR-1.5, and WR-1.0.

Question 2

Up to which frequency do your waveguide components extend?

Accepted Answer

From very low frequencies up to 1.7 THz. We cover the complete spectrum – from classic industrial applications in the low GHz range to sub-THz research, spectroscopy, and imaging.

Question 3

Which flanges are standard?

Accepted Answer

UG flanges, UBR flanges, and IEEE-1785-compliant precision flanges. For higher frequencies (from WR-10 onward), we supply with UG-387 or custom flange designations.

Question 4

Do you supply custom waveguide lengths or twists / bends?

Accepted Answer

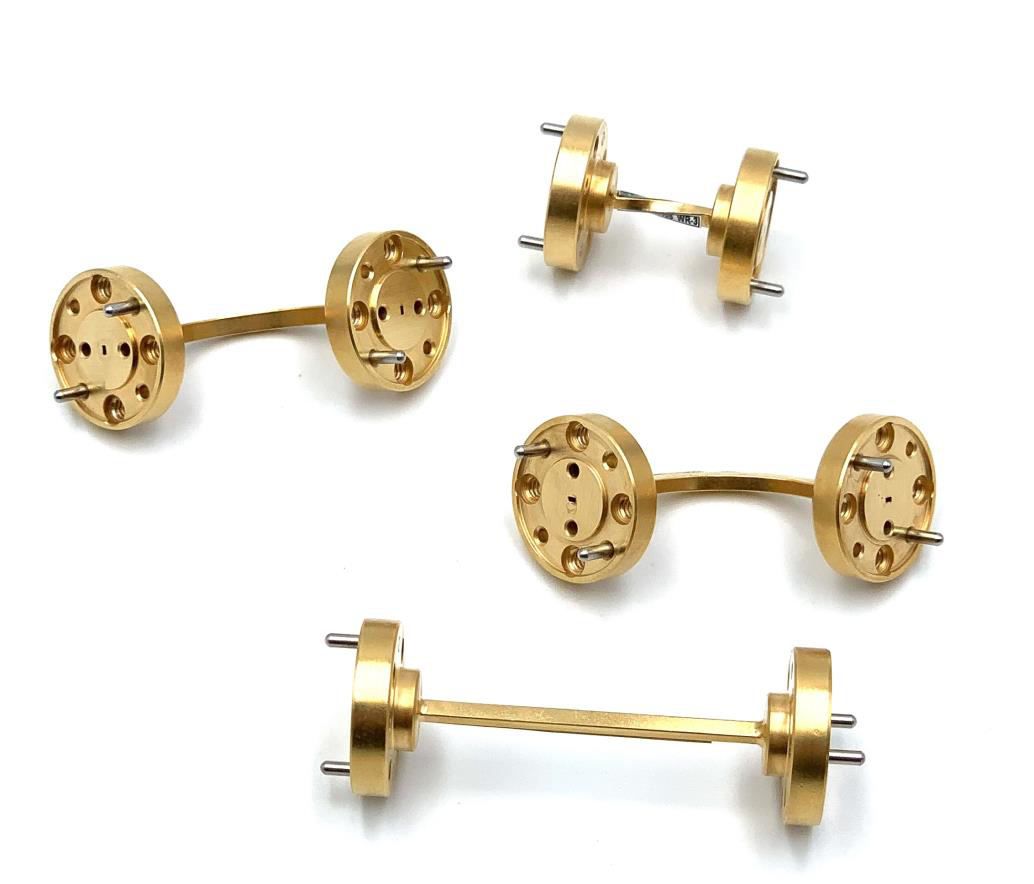

Yes, custom straight lengths are possible up to 1.7 THz. We supply bends and twists up to 750 GHz, also in split-block design (robust cube versions) for higher mechanical requirements.

Question 5

Which materials are available?

Accepted Answer

Standard is aluminum and copper; gold-plated inner walls (for low loss) as well as silver-plated surfaces are also available. Stainless steel versions for corrosive or vacuum environments upon request.

Waveguide Components

Adapters up to 170 GHz

Amplifiers up to 340 GHz

Antennas up to 750 GHz

Attenuators up to 500 GHz

Bends up to 1700 GHz

Calibration Kits up to 325 GHz

Circulators up to 170 GHz

Couplers up to 500 GHz

Detector Mounts up to 325 GHz

Diplexer WR430 to WR12

Filters up to 400 GHz

Flexible & Twistable Waveguides

Isolators up to 260 GHz

Magic Tees up to 170 GHz

Mixers and IQ Mixers up to 330 GHz

Multipliers up to 400 GHz

Nearfield Probe Antennas up to 500 GHz

Oscillators up to 260 GHz

Orthomode Transducer up to 260 GHz

Power Dividers up to 110 GHz

Rotary Joints up to 40 GHz

Shims up to 110 GHz

Shorts up to 225 GHz

Straights up to 1700 GHz

Stub Tuner up to 40 GHz

Switches up to 260 GHz

Termination Loads up to 500 GHz

Transitions up to 325 GHz

Twists up to 750 GHz

Tx/Rx Modules up to 500 GHz

Waveguide Gaskets
