Adapters up to 170 GHz

Waveguide Adapters up to 170 GHz – Precision Transition Solutions for Extreme Frequency Ranges

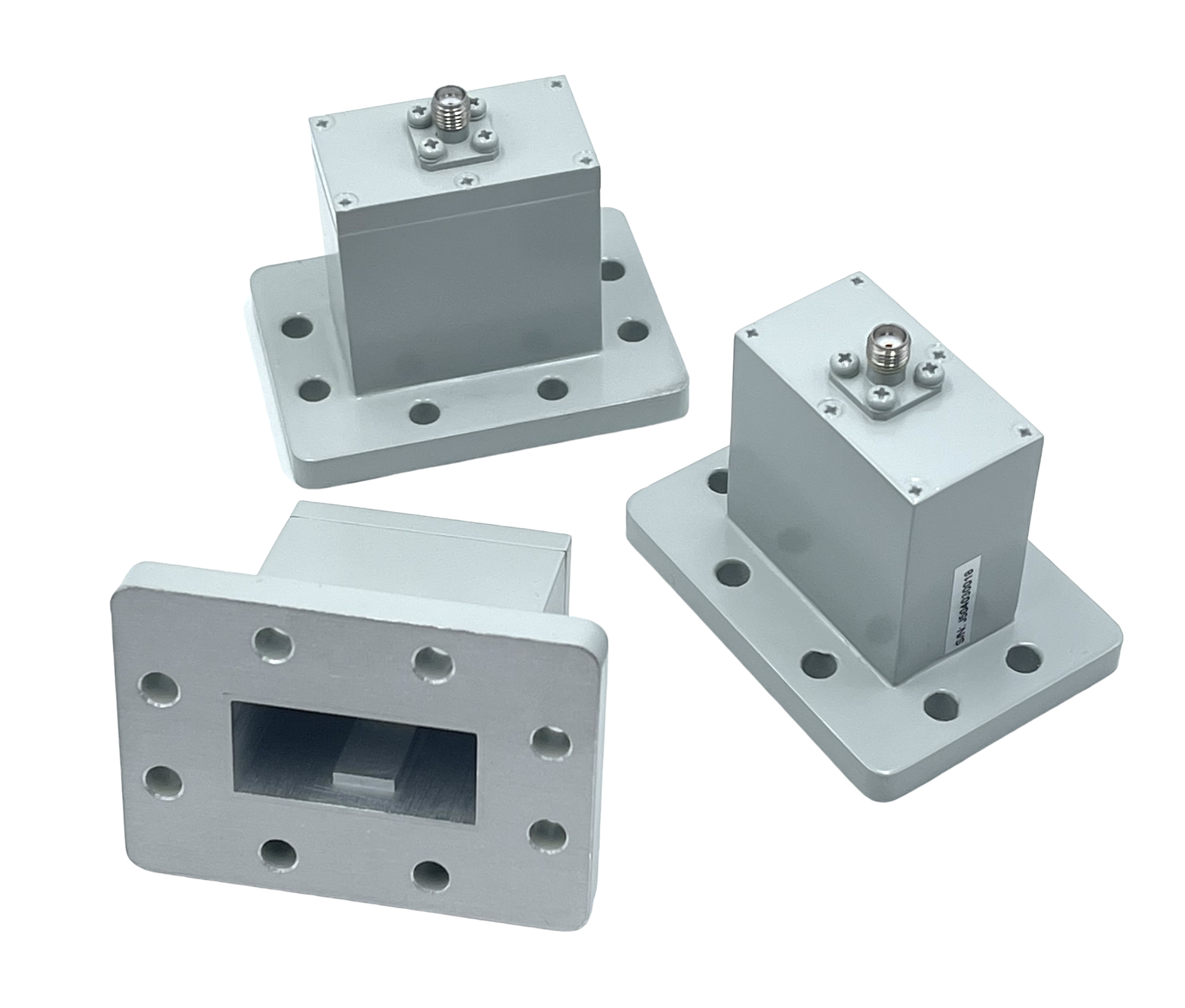

The adapter series from bq-microwave provides reliable connections between waveguide and coaxial systems across the entire spectrum from 1.7 GHz to 170 GHz. From WR2300 to WR6, our components deliver optimal RF performance with minimal insertion loss and high mechanical stability for demanding high-frequency applications.

Key Features

• Frequency range up to 170 GHz – full mmWave and THz support
• End launch and right angle configurations for flexible PCB layout options
• Double ridged and standard rectangular waveguide designs
• Low VSWR values and optimized insertion loss
• Custom solutions for specific impedance and bandwidth requirements

Applications

• High-frequency test and measurement systems and network analyzer calibration
• SATCOM and defense radar systems
• 5G/6G mmWave frontend integration
• FMCW and pulsed radar systems for automotive ADAS
• LNA, HPA, and PLL/VCO test environments
• Research and development in the sub-THz range

Our waveguide adapters combine low-inductance designs with mechanical robustness. They enable seamless transitions between different waveguide systems and ensure consistent RF integrity across extreme frequency bands – critical for applications where signal loss and reflections must be minimized.

bq-microwave supplies you with verified components from leading manufacturers and offers technical consultation for your specific system requirements – from prototype to production series with guaranteed availability.
