Question 1

What measurement and test systems do you offer?

Accepted Answer

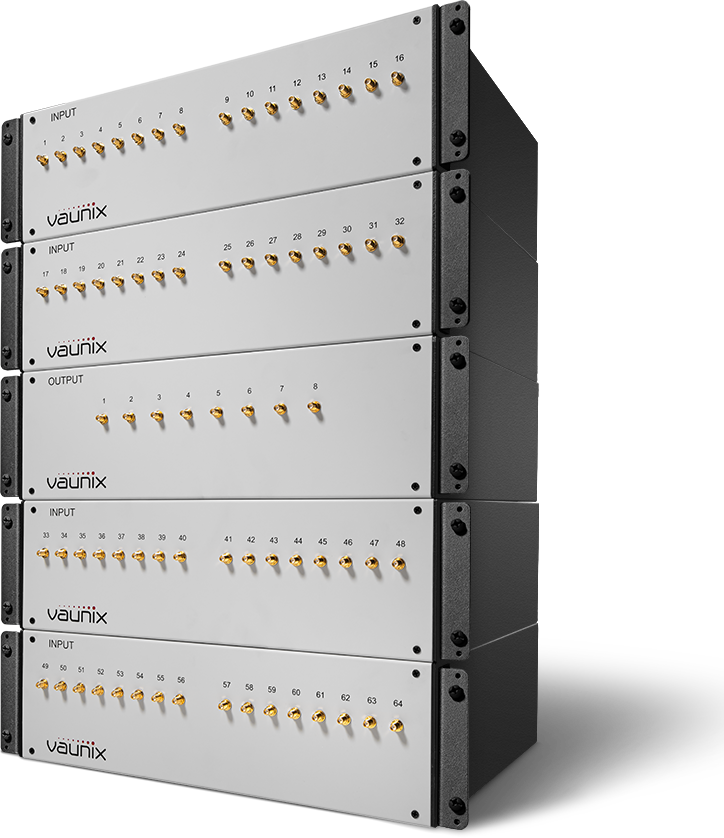

Vector Network Analyzer and VNA frequency extenders up to 500 GHz, spectrum analyzer extenders up to 500 GHz, signal generator extenders up to 400 GHz, beamformer test systems for 5G mmWave and 6G research, as well as Vaunix multi-channel attenuators up to 8 GHz with 2 to 64 channels and handover test systems up to 512 channels.

Question 2

What is the maximum frequency range of your VNA / spectrum analyzer extenders?

Accepted Answer

VNA extenders and spectrum analyzer extenders reach up to 500 GHz (WR-19 to WR-2.2). Signal generator extenders cover the range from WR-22 to WR-2.8 and reach up to 400 GHz. The extenders are compatible with common VNA platforms (Keysight, Rohde & Schwarz, Anritsu).

Question 3

Are the beamformer modules available for 5G FR2 (24–44 GHz)?

Accepted Answer

Yes, we offer TMYTEK BBoard and BBox One/Lite beamformers for 26 GHz, 28 GHz and 39 GHz – complete with software control via USB.

Question 4

Can you supply complete up/down-converter setups?

Accepted Answer

Yes, both as individual modules and as integrated systems up to 330 GHz. Including LO source, IF filtering and software control – as a turnkey solution for 5G/6G research.

Question 5

Which modules are USB / software-controllable?

Accepted Answer

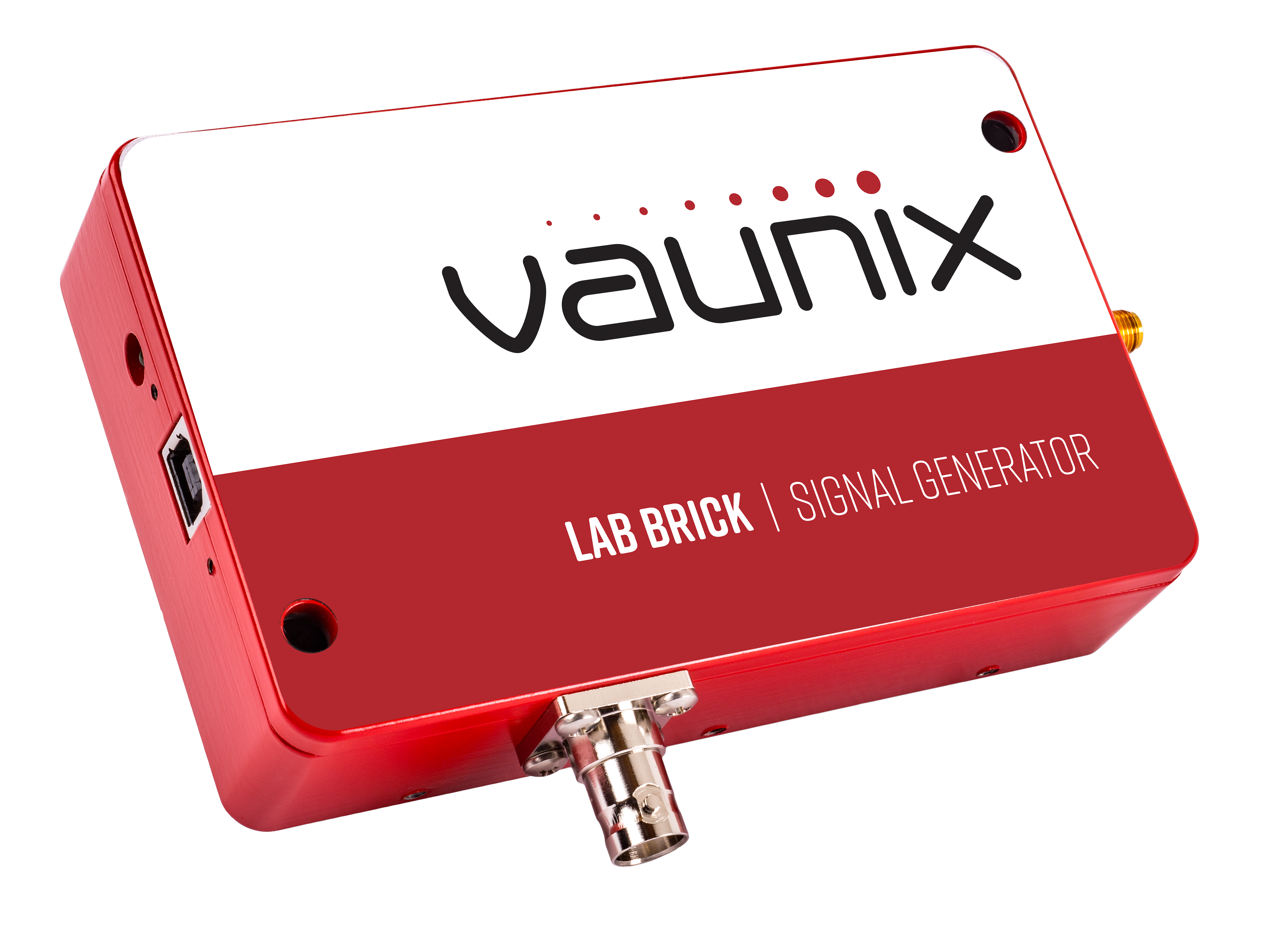

Vaunix LabBrick (Attenuators, Phase Shifter, Signal Generators), TMYTEK beamformers and the SignalCore synthesizers are all controllable via USB – with SDK for LabVIEW, Python and MATLAB.

Question 6

Do you offer service / calibration / repair?

Accepted Answer

Repair and service are handled directly by the manufacturers – we coordinate the entire process from submission to return. Calibration certificates can be ordered as an option for many modules.

Modules & Systems

5G Up/Down Converter Boxes by TMYTEK

BBoard 5G Beamformer – Developer Kit

BBox One & BBox Lite – 5G Beamformer 26/28/39 GHz

Bench Top Amplifiers up to 270 GHz

Handover Test Systems / Programmable RF Attenuators up to 40 GHz

High Power Amplifier Systems up to 270 GHz – Pulsed & CW

Scalar Network Analyzer up to 225 GHz

Signal Generator Extenders up to 400 GHz

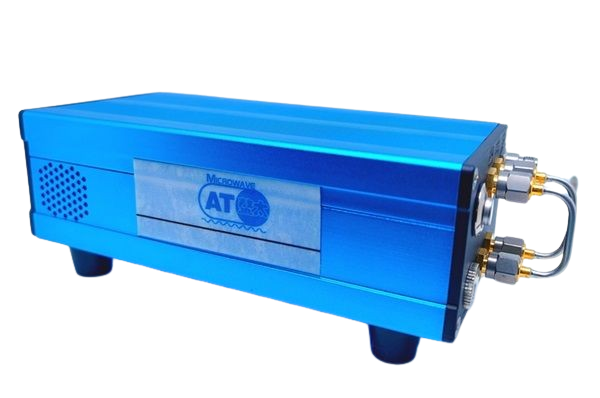

Spectrum Analyzer Extenders up to 500 GHz

Up/Downconverter up to 330 GHz

Vector Network Analyzers up to 170 GHz

VNA Frequency Extender up to 500 GHz
