Antennas up to 1100 GHz

Waveguide Antennas up to 1100 GHz – High-Frequency Antenna Solutions for Demanding Applications

The antenna family up to 1100 GHz covers the complete spectrum from standard waveguide frequencies to the sub-terahertz range up to 1100 GHz. With designs from WR2300 to WR1.0, these high-performance antennas offer precise beam shaping, high gain, and minimal VSWR for RF, mmWave, and THz test and measurement as well as communication systems.

Key Features

• Frequency range: 200 MHz to 1100 GHz

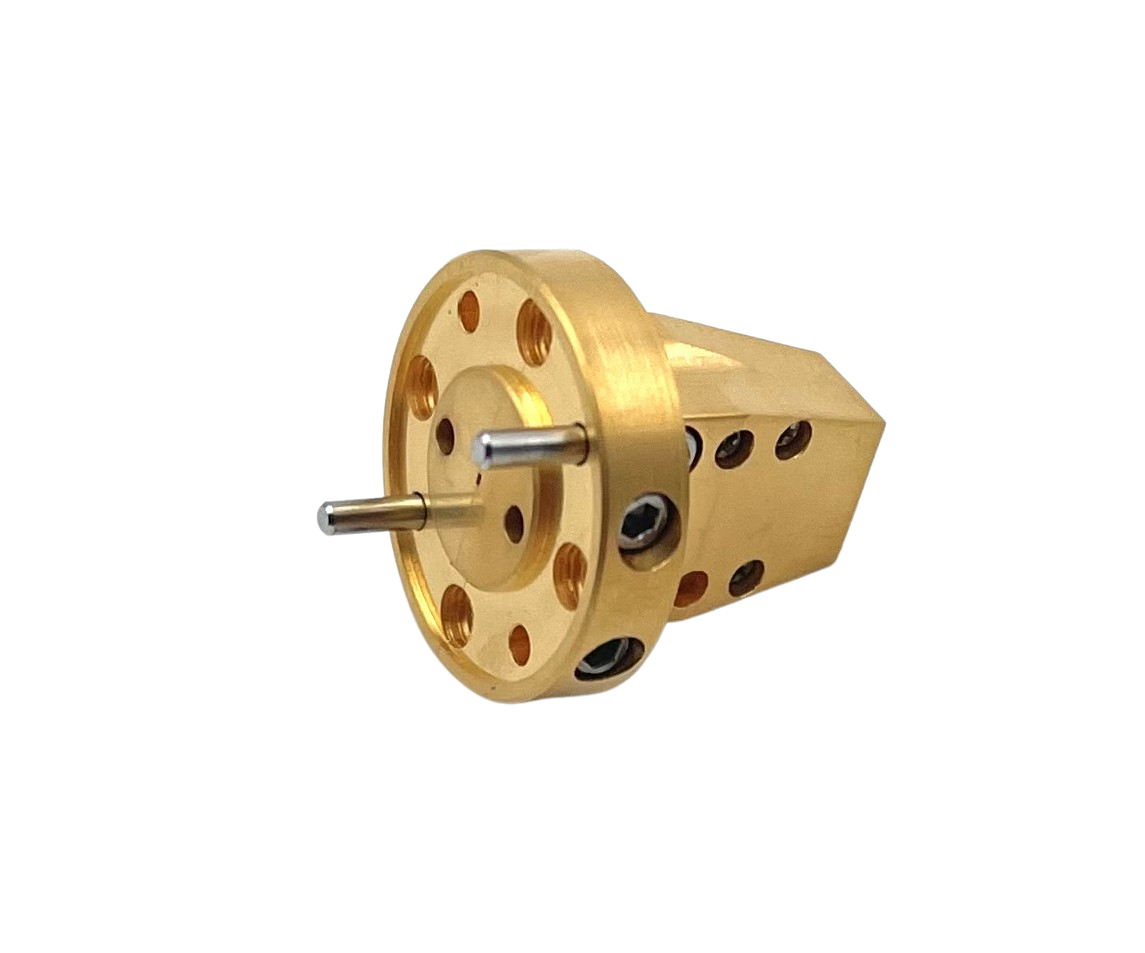

• Gain horn antennas with optimized beam pattern for focused radiation characteristics
• Wideband horn antennas for broadband applications up to 40 GHz
• Probe antennas for precise field measurements up to 500 GHz

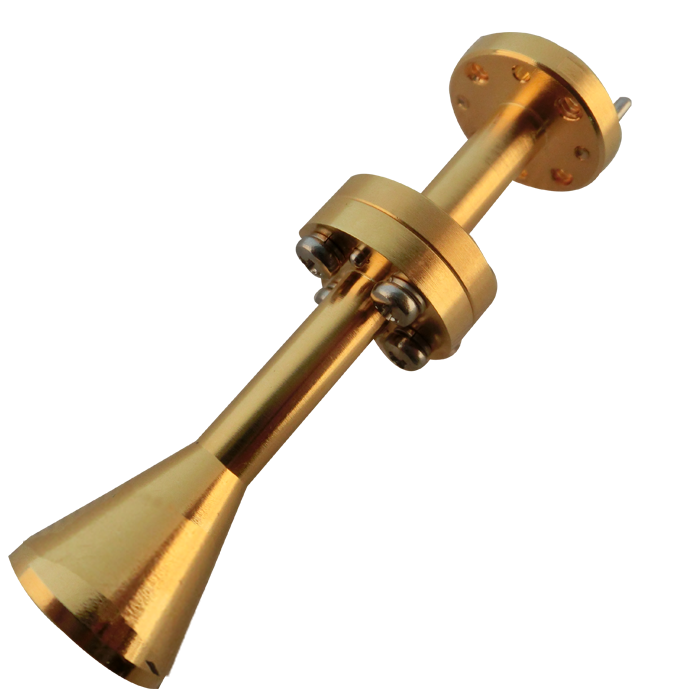

• Circularly polarized variants for polarization-dependent systems
• Conical horn lens antennas with integrated lens systems
• Omni directional antennas for far-field coverage
• Custom solutions designed to specification
• Low VSWR and high gain characteristics

Applications

• 6G and 5G test and measurement stations
• Millimeter-wave radar and FMCW sensors
• SATCOM and defense systems
• THz spectroscopy and imaging
• Wireless backhaul and point-to-point links
• Laboratory test and measurement and calibration
• ADAS development and validation

bq-microwave works with established manufacturers to deliver antennas with consistent performance parameters and certified quality. Each antenna is tested for exact radiation patterns and electrical specifications.

For inquiries regarding specific frequency bands, polarizations, or custom solutions, please contact our technical consulting team. We support you in selecting the optimal antenna configuration for your RF or mmWave system.
