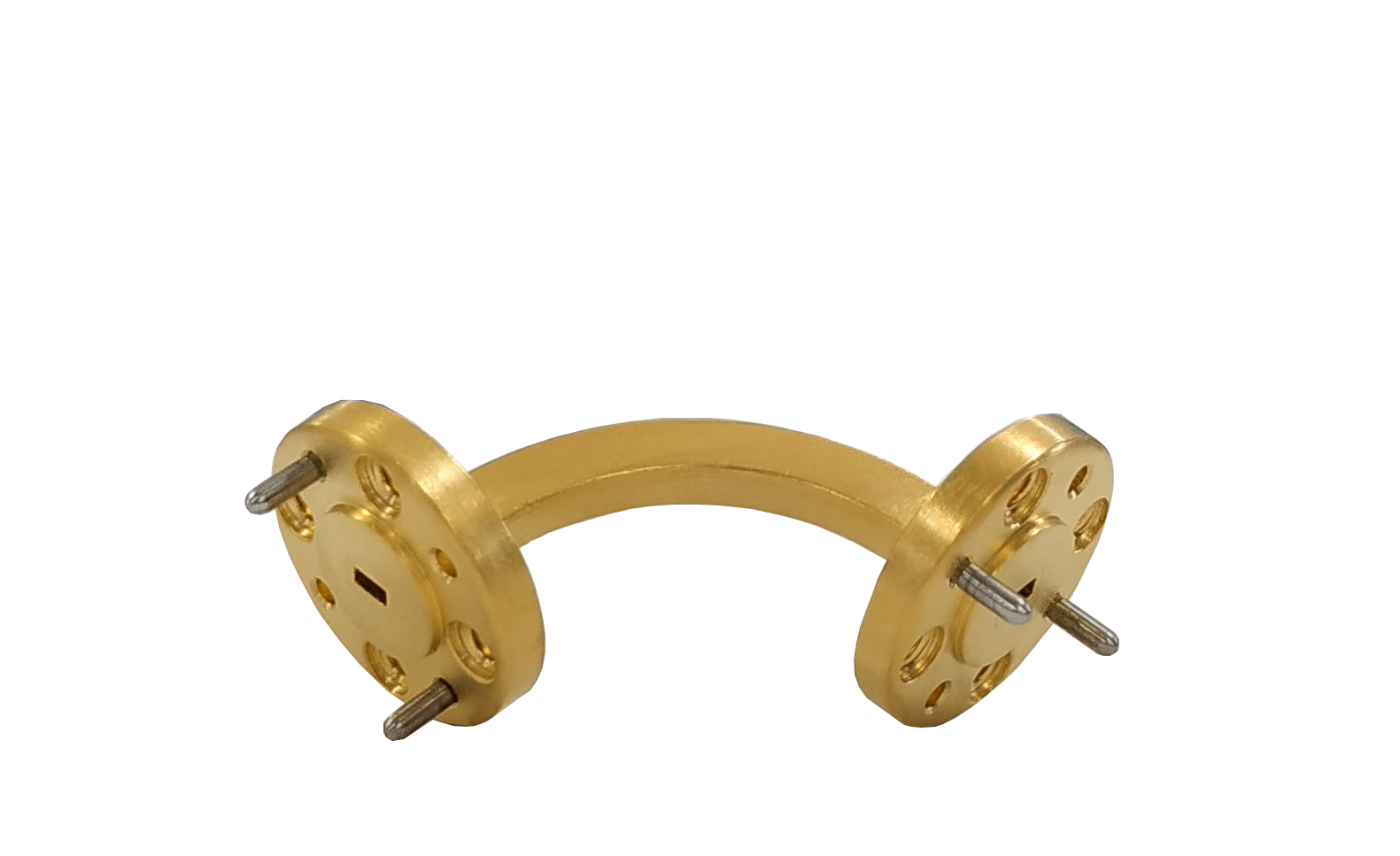

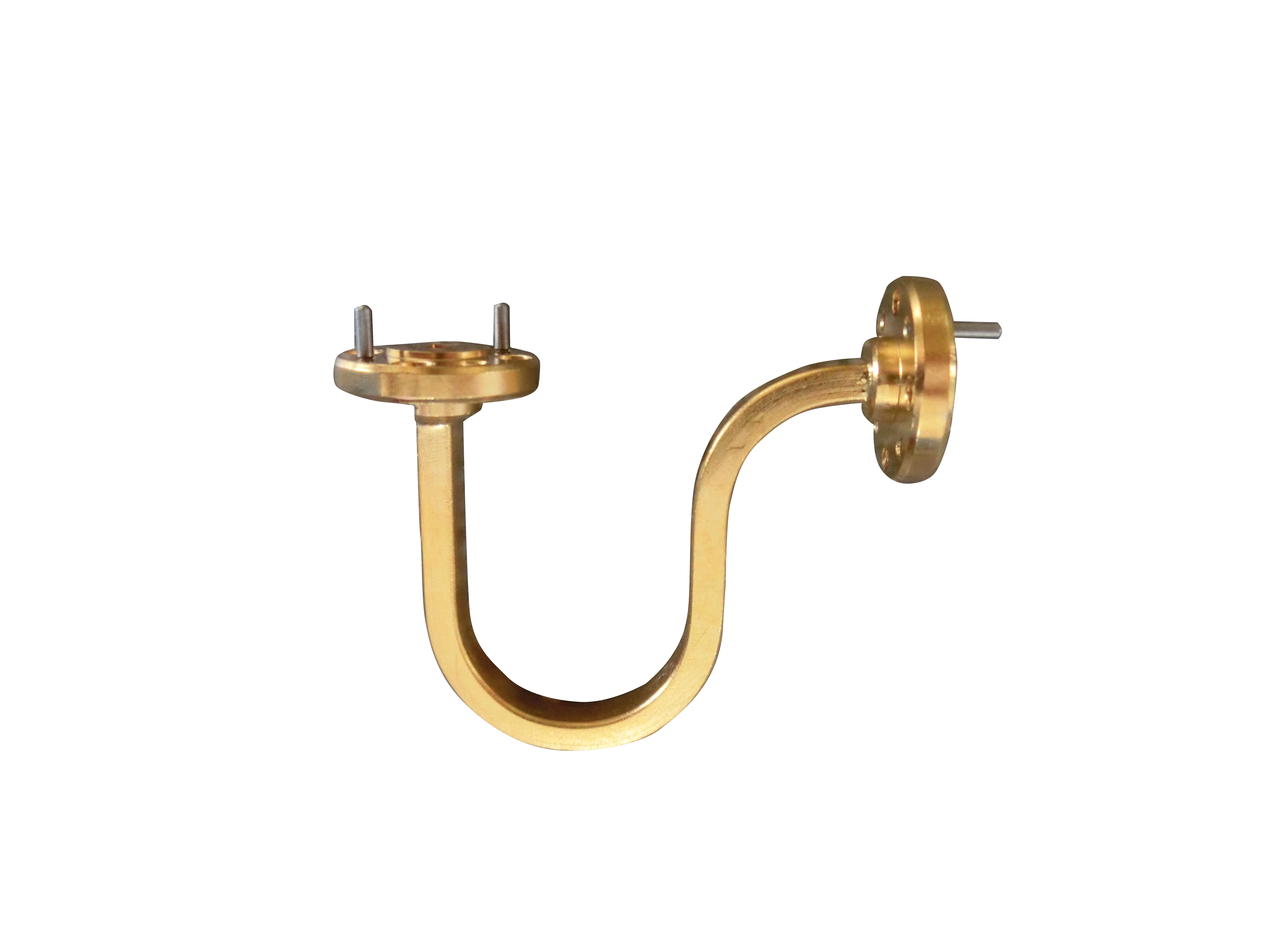

Bends up to 1700 GHz

Waveguide bends are essential components for routing RF and mmWave signals in complex transmission systems. At bq-microwave, you receive high-precision bend components up to 1700 GHz that ensure optimal electrical performance and mechanical stability.

Our waveguide bends enable flexible directional changes of electromagnetic waves without significant signal losses. They are essential for system integration in radar, communications, and test and measurement applications at the highest frequencies.

Bend Types

• E-Bend: Bending in the E-field plane for optimal impedance matching and minimal reflections
• H-Bend: Bending in the H-field plane, ideal for space-saving system layouts
• Miter Bend: 45° bends with internal metallization to optimize wave behavior

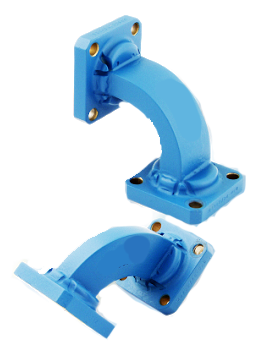

• Swept Bend: Continuously curved bends for ultra-wide bandwidths and low VSWR values

Key Features

• Frequency range: WR0.65 to WR2300
• Ultra-low VSWR and minimal insertion loss
• Precision tolerances for maximum signal integrity
• Immediate availability from European stock

Applications

• 5G/6G communication systems and network infrastructure
• Millimeter-wave radar and sensors
• SATCOM and defense electronics
• Test and measurement systems for RF characterization
• High-frequency subsystems and array antennas

The correct bend selection determines system performance and reliability. With our comprehensive portfolio, we offer custom solutions for standardized and customer-specific requirements. Each component is rigorously tested to guarantee consistent electrical specifications.

bq-microwave supports you in selecting the optimal bend configuration for your RF/mmWave system. Contact our technical team for technical specifications, samples, or high-volume inquiries.
