360° Analog Phase Shifter 3-6 GHz

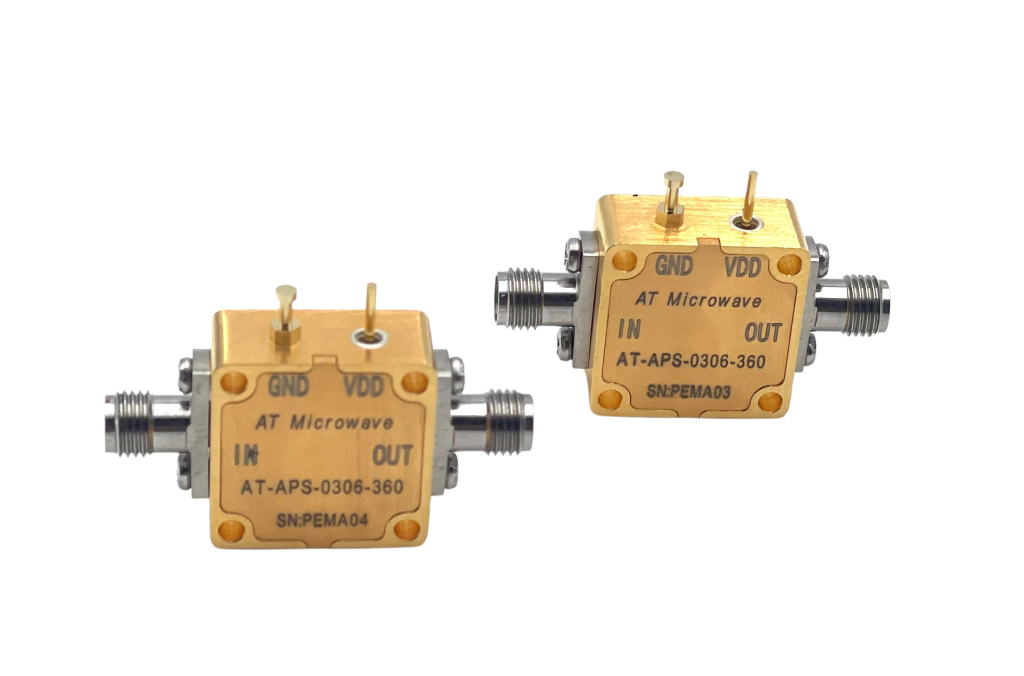

The APS-0306-360 is a 360° analog phase shifter designed for the 3-6 GHz frequency band. This component delivers continuous phase adjustment across the full 360-degree range, making it suitable for dynamic RF signal conditioning in communication systems, phased array antennas, and test environments. The phase shifter utilizes SMA-female connectors for straightforward integration into existing RF architectures.
Technical Specifications
- Frequency Range: 3-6 GHz
- Phase Adjustment: 360° continuous
- Connector Type: SMA-female
- Model: APS-0306-360
- Extended Portfolio: Broadband variants available (1-2 GHz, 2-7 GHz, 6-18 GHz, 18-26.5 GHz)
- Coverage: Analog phase shifters up to 31 GHz available
Applications
- Phased Array Systems: Antenna beam steering and pattern control for radar and communication systems
- SATCOM: VSAT radios and satellite communication terminals requiring dynamic phase adjustment
- Point-to-Point Radio: Directional RF signal management and beam optimization
- Test & Measurement: Laboratory and field testing infrastructure for RF component characterization
- Defense & Space: Precision phase shifting for demanding military and aerospace applications
bq-microwave offers a comprehensive range of phase shifter solutions covering diverse frequency bands from 1 GHz to 31 GHz. For specific inquiries regarding analog or digital phase shifters, custom frequency ranges, or integration assistance, contact the team at info@bq-microwave.de.
Product Data Sheet
Technical specifications as PDF
