Broadband Power Amplifier 10 MHz to 70 GHz from AT Microwave
AT Microwave offers a series of broadband power amplifiers with continuous frequency coverage from 10 MHz to 70 GHz. These RF components deliver +15 dBm saturated output power with a 6 dB noise figure, providing both amplification and low-noise performance in a unified design. The amplifiers feature high gain consistency, superior linearity, and optimized input/output impedance matching to minimize signal reflections across the entire operational bandwidth.
Technical Specifications
- Frequency Range: 10 MHz to 70 GHz continuous coverage
- Output Power (Psat): +15 dBm
- Noise Figure: 6 dB
- Gain Options: 18 dB, 30 dB, 40 dB, and 50 dB variants available

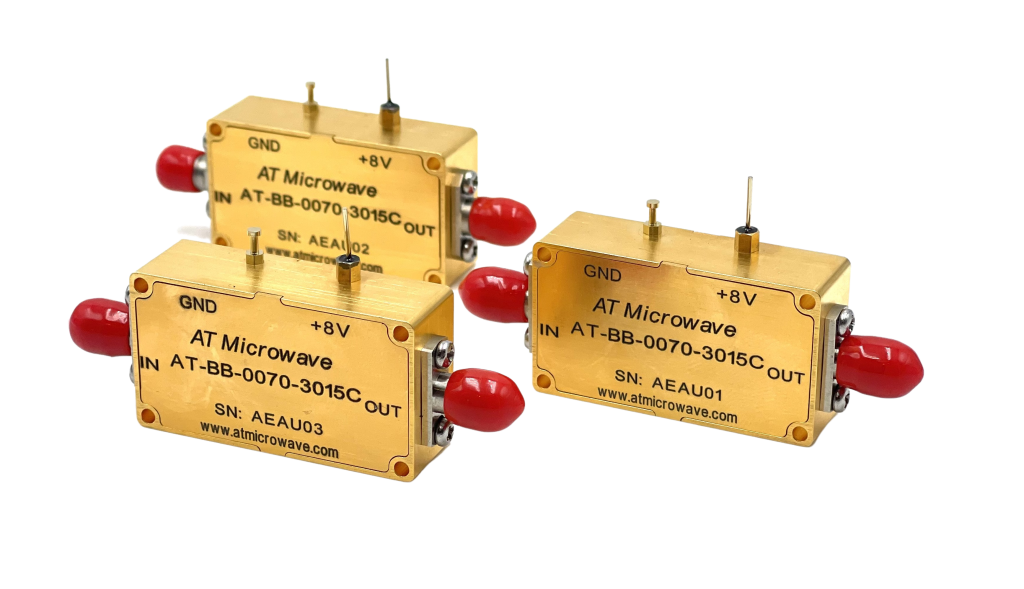

- Model Designations: AT-BB-0070-1815C, AT-BB-0070-3015C, AT-BB-0070-4015C, AT-BB-0070-5015L
- Frequency Response: Flat gain characteristic
- Power Supply: Single supply configuration with bench-top 110-240V option available
Application Areas
- 5G/6G & Telecommunications: Communication systems and infrastructure testing across microwave and mmWave frequencies
- Test & Measurement: Broadband RF test equipment, measurement systems, and mmWave component characterization
- Defense & Aerospace: Radar systems, sensing applications, and RF subsystems requiring wide frequency coverage
- Fiber Optics: RF over Fiber (RoF) transmission systems
The modular architecture enables deployment in both laboratory settings and integrated system designs. With multiple gain configurations available, engineers can select the optimal device for their specific dynamic range and sensitivity requirements.
bq-microwave is the European distributor for AT Microwave, providing competitive pricing and streamlined procurement processes. For technical documentation, performance measurements, or system integration support, please contact our team.
