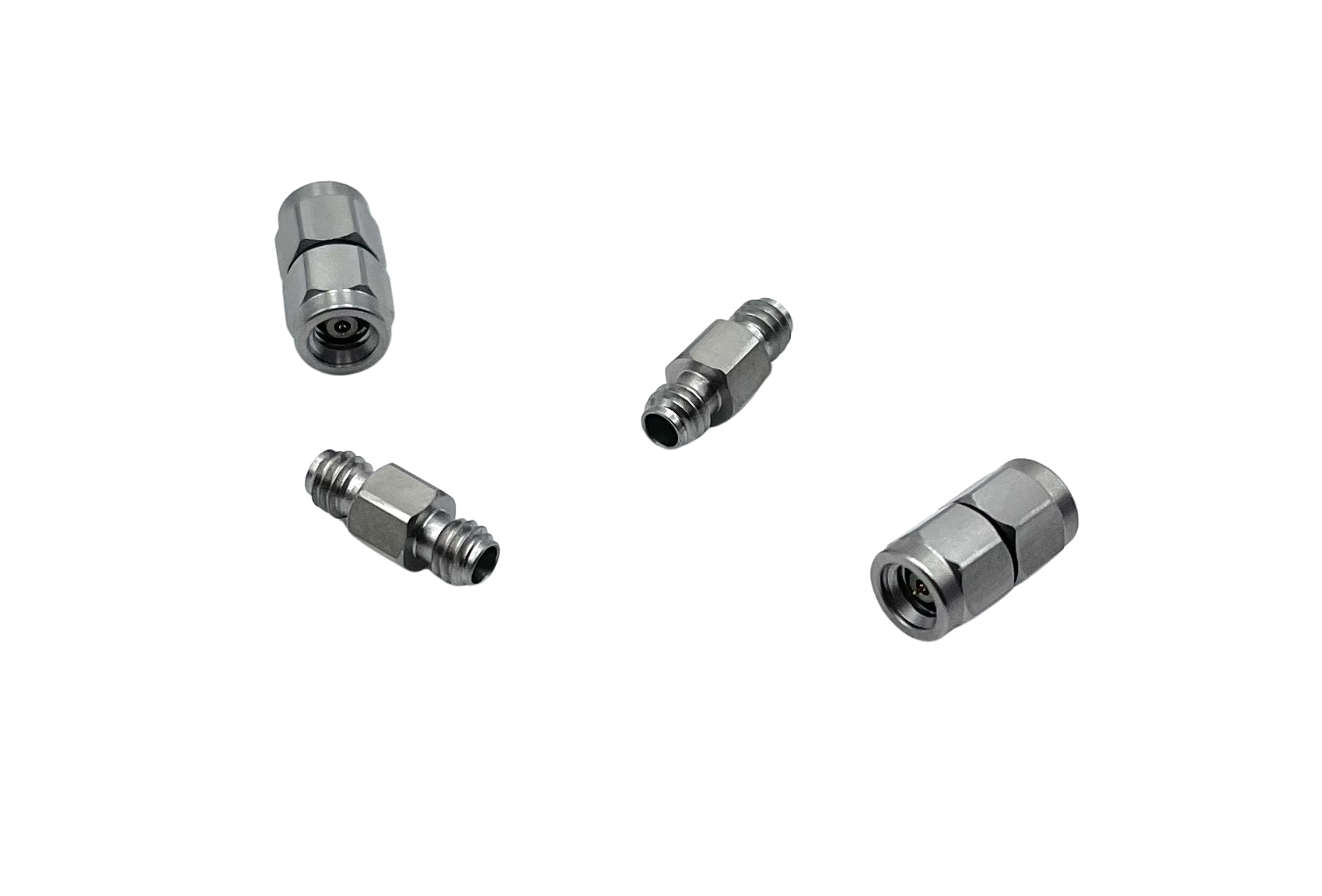

Coaxial Adapter DC-110 GHz for mmWave Interconnect
This coaxial adapter covers the DC to 110 GHz frequency range, providing a compact RF interconnect solution for microwave and millimeter-wave systems. The adapter offers seamless frequency coverage from DC through the upper mmWave spectrum with controlled electrical performance.
The adapter uses 1mm male and female connectors, establishing a reliable interface for systems requiring minimal signal degradation across ultra-wideband operations. Its performance metrics and compact form factor make it suitable for integration into test setups, instrumentation, and production environments where signal integrity is critical.
Technical Specifications
- Frequency Range: DC to 110 GHz
- Impedance: 50Ω
- VSWR: 1.35 maximum
- Insertion Loss: 0.6 dB maximum
- Connector Type: 1mm male and female interfaces
Application Areas
- 5G/6G & Telecommunications: Network component testing and validation in FR2 and FR3 frequency bands
- SATCOM: Payload integration and RF signal distribution in satellite communication systems
- Defense & Aerospace: Broadband interconnect for radar and EW applications
- Research & Test: Laboratory instrumentation and DC-coupled measurement setups
The controlled VSWR of 1.35 and insertion loss of 0.6 dB maximum ensure this adapter maintains system performance without introducing significant reflections or attenuation across its entire frequency band. This is particularly valuable for applications with strict loss budgets, such as low-noise receiver front-ends and sensitive measurement chains.
bq-microwave offers this coaxial adapter solution as part of a comprehensive portfolio of RF and mmWave interconnect components. Technical documentation and detailed specifications are available through our contact channels.
