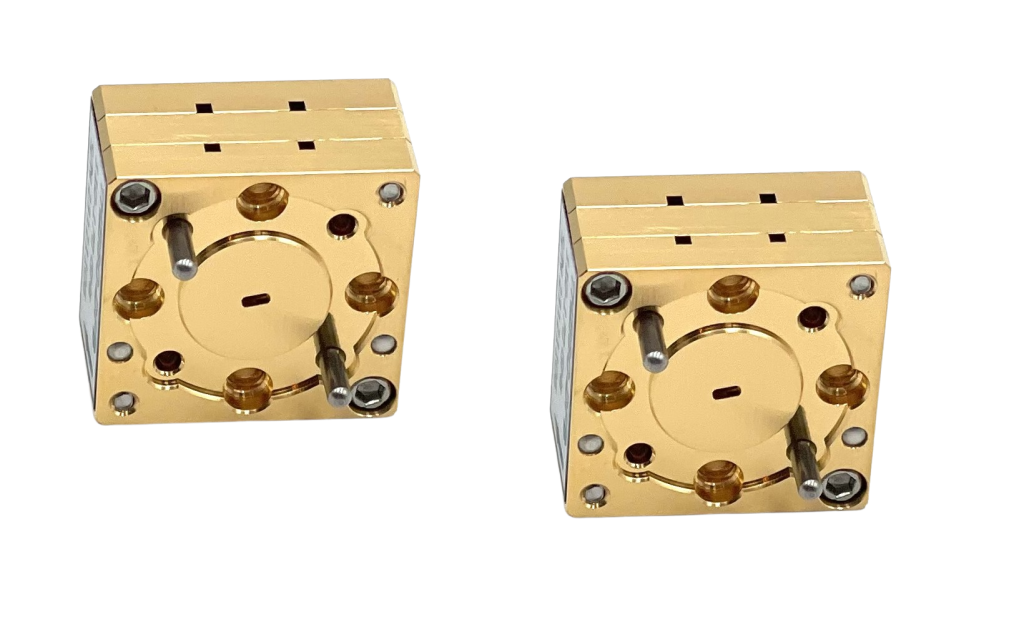

D-Band Waveguide Isolator 110-170 GHz
This D-Band waveguide isolator covers the 110-170 GHz frequency range and provides robust signal isolation for demanding millimeter-wave applications. The WR6 component delivers performance characteristics suitable for next-generation communication systems, aerospace platforms, and laboratory measurement setups requiring precise RF signal management in the sub-terahertz spectrum.
The isolator addresses the growing need for reliable non-reciprocal components as system designers push toward higher frequency bands for increased bandwidth and directional signal control. Integration of such devices becomes critical in complex RF chains where reflected power and signal leakage must be minimized to maintain system stability and measurement accuracy.
Technical Specifications
- Frequency Range: 110-170 GHz (D-Band fullband coverage)
- Waveguide Standard: WR6 with UG 387/U-M flange interface
- Isolation Performance: Greater than 20 dB across operating bandwidth
- Insertion Loss: 0.8 dB typical; 1.3 dB maximum
- Operating Principle: Non-reciprocal ferrite-based signal attenuation
Application Areas
- SATCOM Systems: Satellite communication terminals requiring stable downlink signal paths and interference rejection
- Defense & Radar: Millimeter-wave radar and electronic warfare platforms operating in D-Band spectrum
- 6G Research: Next-generation wireless testbeds and laboratory measurement setups
- Amplifier Protection: Safeguarding high-power amplifier stages from reflected energy and protecting low-noise amplifier input stages in sensitive receiver architectures
The broadband design eliminates the need for multiple components across the 110-170 GHz span, reducing assembly complexity and interconnection losses in space-constrained RF modules. The specified insertion loss of 0.8 dB typical ensures minimal degradation of system noise figure and gain characteristics.
bq-microwave maintains an extended portfolio of fullband waveguide isolators spanning WR15 through WR2.8, with frequency coverage extending to 400 GHz. For technical documentation, performance curves, or application support, contact the team via contact form or info@bq-microwave.de.
