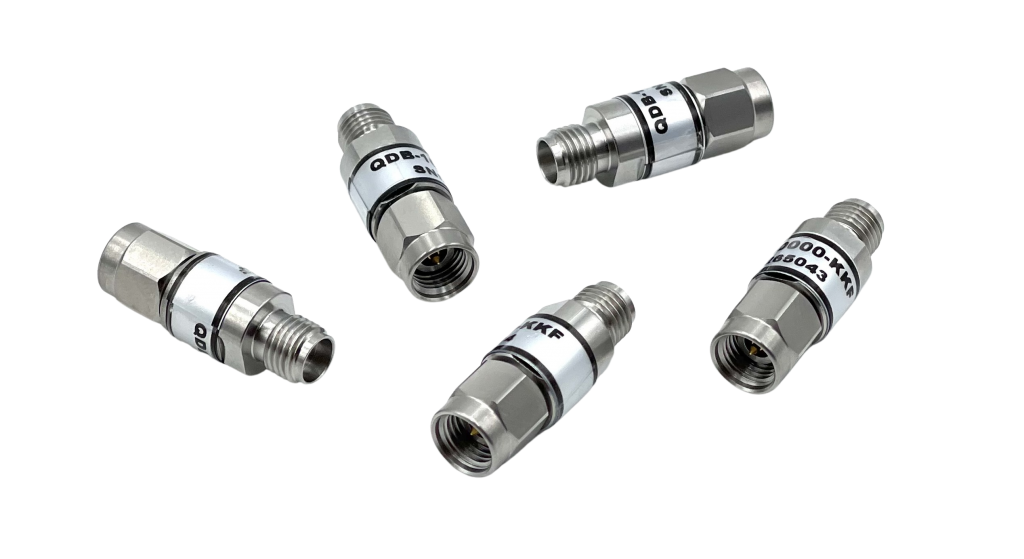

DC-Blocks for RF and mmWave Systems up to 110 GHz
DC-Blocks are essential passive components in RF and mmWave systems, enabling DC voltage separation while allowing high-frequency signals to pass through coaxial transmission lines without impediment. These components utilize internal capacitive coupling to block direct current while maintaining minimal insertion loss and excellent VSWR performance across their operational bandwidth.
Technical Specifications
- Frequency Range: DC to 110 GHz
- Connector Options: SMA, 2.4mm, 1mm, and waveguide interfaces
- Power Handling: Up to 100W continuous operation
- Voltage Rating: High voltage designs for demanding applications
- Insertion Loss: Low loss across entire bandwidth
- VSWR: Optimized for seamless system integration
- Form Factor: Compact 1mm designs available for space-constrained installations
Applications
- 5G and 6G Infrastructure: Signal conditioning in base station amplifier chains and receiver paths
- SATCOM Systems: DC separation in satellite communication uplink and downlink modules
- Defense and Radar: Protection of sensitive RF components in military communication networks
- mmWave Test and Measurement: Precise signal isolation in laboratory characterization setups
- Amplifier Interfaces: Critical coupling between power amplifiers and low-noise amplifiers
As European distributor, bq-microwave offers comprehensive DC-Block solutions from DC to 110 GHz with diverse connector options—from standard coaxial interfaces to specialized 1mm designs for mmWave applications. For detailed technical documentation and specifications, contact our team.
Product Data Sheet
Technical specifications as PDF
