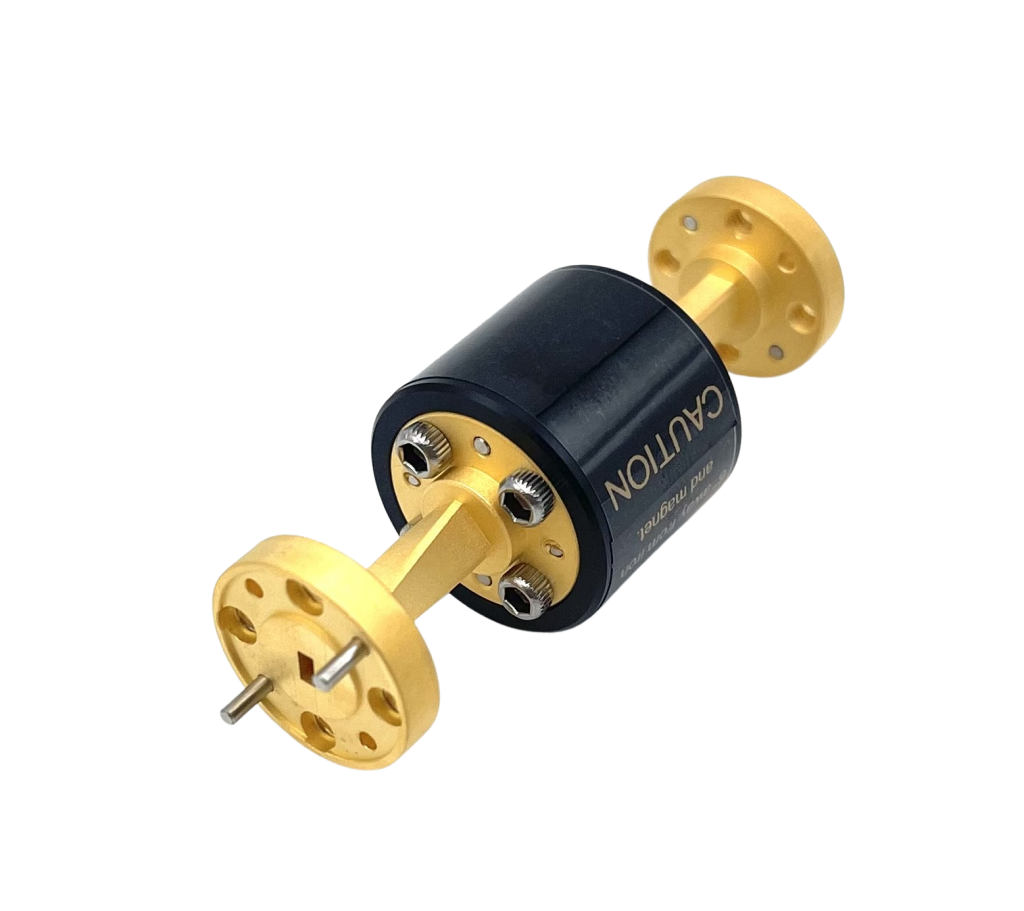

Faraday Isolators up to 260 GHz for mmWave Signal Chain Protection
Faraday isolators are critical passive components in high-frequency RF systems, preventing reflected power from damaging sensitive amplifiers and oscillators. Modern waveguide-based isolators now cover the millimeter-wave spectrum up to 260 GHz, enabling reliable system protection across advanced radar, next-generation wireless infrastructure, and satellite communication applications.
Technical Specifications
- Frequency Range: Up to 260 GHz in upper millimeter-wave band
- Waveguide Standards: WR42 to WR4 for complete frequency coverage
- Configuration: Fullband versions available to minimize component count
- VSWR: Optimized performance across specified frequency ranges
- Insertion Loss: Low-loss characteristics to preserve signal integrity
- Isolation: High isolation efficiency protecting downstream components from reflected signals
Applications
- 5G/6G Infrastructure: Protection of power amplifiers and LNAs in base stations and backhaul systems
- mmWave Radar: Automotive radar, industrial sensing, and security applications requiring isolation above 100 GHz
- SATCOM: Uplink and downlink chain protection for satellite communication equipment
- Defense & Aerospace: Electronic warfare, communication links, and sensor protection in high-frequency bands
- Test & Measurement: Waveguide test fixtures and measurement systems in sub-terahertz bands
- Research: Terahertz research platforms and experimental RF systems
Fullband isolator versions simplify system architecture by combining multiple frequency ranges into single components, reducing interconnect losses and improving reliability. The extension to 260 GHz required advances in waveguide design and ferrite material optimization to maintain performance across increasingly narrow waveguide cross-sections.
bq-microwave provides access to premium Faraday isolators and circulators from specialized manufacturers, supported by comprehensive technical documentation and application guidance for engineers developing next-generation mmWave systems.
