Right Angle Coax Adapters up to 50 GHz

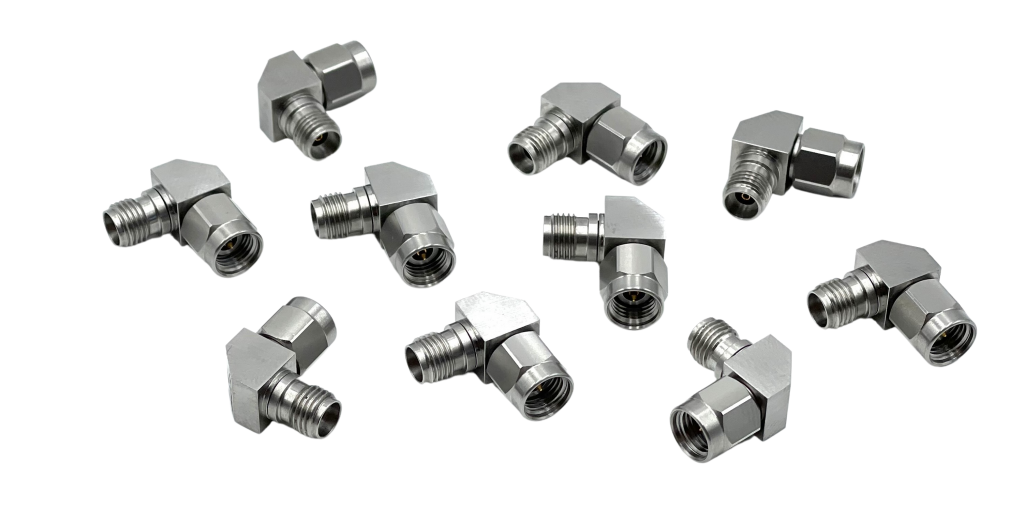

Right angle coax adapters provide 90-degree elbow configurations for RF and mmWave systems where spatial constraints require perpendicular transmission paths. These adapters enable compact board layouts and restricted-space installations while maintaining signal integrity across frequencies from DC to 50 GHz.
The portfolio supports multiple industry-standard connector types, eliminating the need for cascaded adapters that introduce additional insertion loss and VSWR degradation.
Technical Specifications
- Frequency Range: DC to 50 GHz
- Connector Types: 2.4mm, 2.92mm, SMA, TNC, BNC, N-type, SC 7-16 DIN
- Configuration: 90-degree right angle design
- Impedance: Controlled impedance matching with minimal VSWR
- Performance: Low insertion loss across operating frequency band
- Form Factor: Compact design for integration into restricted PCB layouts
Applications
- 5G/6G Network Infrastructure: Base station components, antenna feed networks, and transceiver module interconnection
- SATCOM Systems: Ground station equipment and uplink/downlink configurations requiring right-angle routing
- Defense & Aerospace: Radar systems, electronic warfare, and avionics RF interconnection
- Test & Measurement: Vector network analyzers, spectrum analyzers, and signal generator setups in laboratory environments
- mmWave Research: Millimeter-wave imaging and communication prototypes
The availability of multiple connector standards—including precision 2.4mm and 2.92mm variants alongside standard SMA, TNC, and BNC types—ensures compatibility with existing RF test equipment and system architectures.
bq-microwave offers these right angle coax adapters with rapid delivery and comprehensive technical support. For detailed specifications, availability, or custom adapter solutions, please contact our technical team.
