Absorptive SP8T Switch 100 MHz to 8 GHz with USB Control

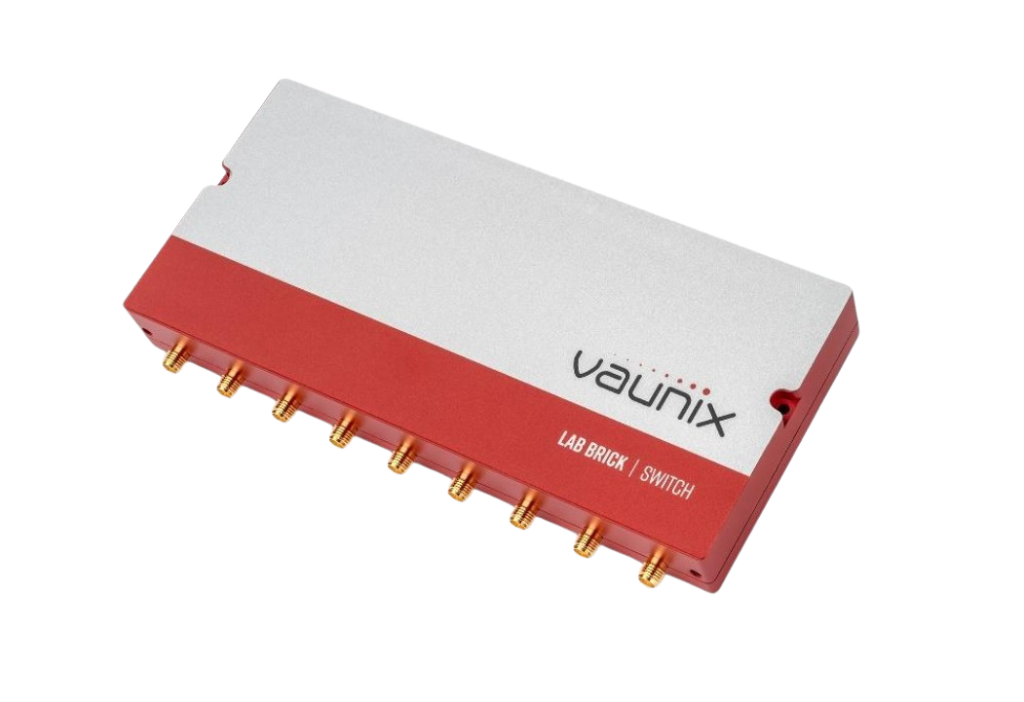

VAUNIX Technology Corporation introduces the LSW-802P8T, an absorptive SP8T RF switch designed for precision test and measurement applications. Covering the frequency range from 100 MHz to 8 GHz, this USB-controlled switch delivers phase-matched port characteristics and absorptive architecture for high-accuracy RF system validation and characterization tasks in laboratory and field environments.
Technical Specifications
- Frequency Range: 100 MHz to 8 GHz
- Switch Type: SP8T (single-pole, eight-throw) absorptive configuration
- Phase Matching: Precisely matched between all ports for measurement accuracy
- Control Interface: USB connectivity for straightforward integration
- Mechanical Design: Compact form factor optimized for benchtop and integrated system deployment
- Construction: Rugged, field-deployable design suitable for diverse operational conditions
Applications
- Test & Measurement: RF test system implementation and multi-channel measurement workflows
- Wireless Communication: Protocol development and validation for modern communication standards
- Aerospace & Defense: Signal routing applications requiring reliable switching performance
- Research & Development: Next-generation RF component characterization and validation
The absorptive design architecture minimizes impedance discontinuities and reflections during port switching transitions, critical when measuring low-level signals or validating components with stringent VSWR specifications. Phase-matched configuration ensures consistent signal path characteristics across all eight ports, eliminating systematic measurement errors introduced by switching operations.
The LSW-802P8T is available as standalone module or integrated into rack-mount systems—1RU configurations accommodate up to four units, while 2RU systems support up to eight units. This flexibility enables scalable solutions for complex multi-channel RF testing scenarios.
As European distributor for VAUNIX Technology Corporation, bq-microwave provides technical documentation, detailed performance data, and procurement support for the LSW-802P8T switch and the complete VAUNIX portfolio. For further information, visit our contact page.
