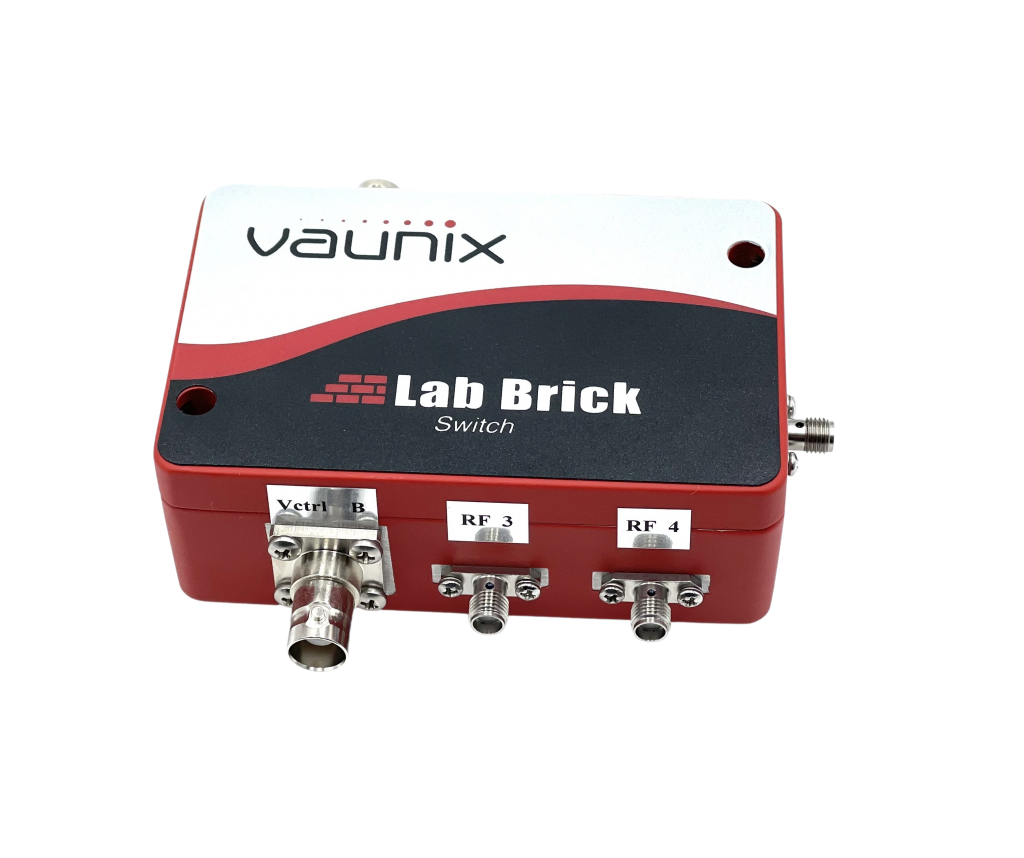

USB-Controlled RF Switches up to 8 GHz
USB-controlled RF Switches have become essential components in modern test and measurement environments, offering seamless integration with automated systems and remote control capabilities. Vaunix provides a comprehensive lineup of RF Switches operating up to 8 GHz, delivering flexible switching architectures suitable for diverse frequency bands and impedance requirements. The USB interface ensures straightforward connectivity across laboratory workstations and portable measurement platforms.
Technical Specifications
- Frequency Range: up to 8 GHz
- Architecture: SPDT (Single Pole Double Throw) and SP4T (Single Pole 4-Throw) configurations
- Impedance: 50Ω and 75Ω characteristic impedance
- Control Interface: USB connectivity for computer-based automation
- Form Factor: Compact design suitable for benchtop and rack-mount installations
Application Areas
- RF/Microwave Test Systems: Automated signal routing in measurement setups for device characterization and performance validation
- 5G & Wireless Communications: Frequency band selection and signal path configuration in communication system prototyping
- SATCOM & Defense: Multi-band switching for satellite ground stations and military RF platforms
- Research & Development: Flexible experimental configurations for academic and industrial RF engineering projects
The availability of dual impedance options—50Ω and 75Ω—addresses requirements across different RF domains, from microwave systems to cable television and video distribution networks. Both SPDT and SP4T topologies provide engineers with flexibility in designing complex switching matrices for multi-channel applications.
bq-microwave, as a European RF and mmWave distributor, supplies Vaunix RF Switches alongside complementary components including Amplifiers, Attenuators, and signal conditioning equipment. For detailed technical documentation and application support, please contact our team.
