Waveguide Filter Solutions up to 400 GHz

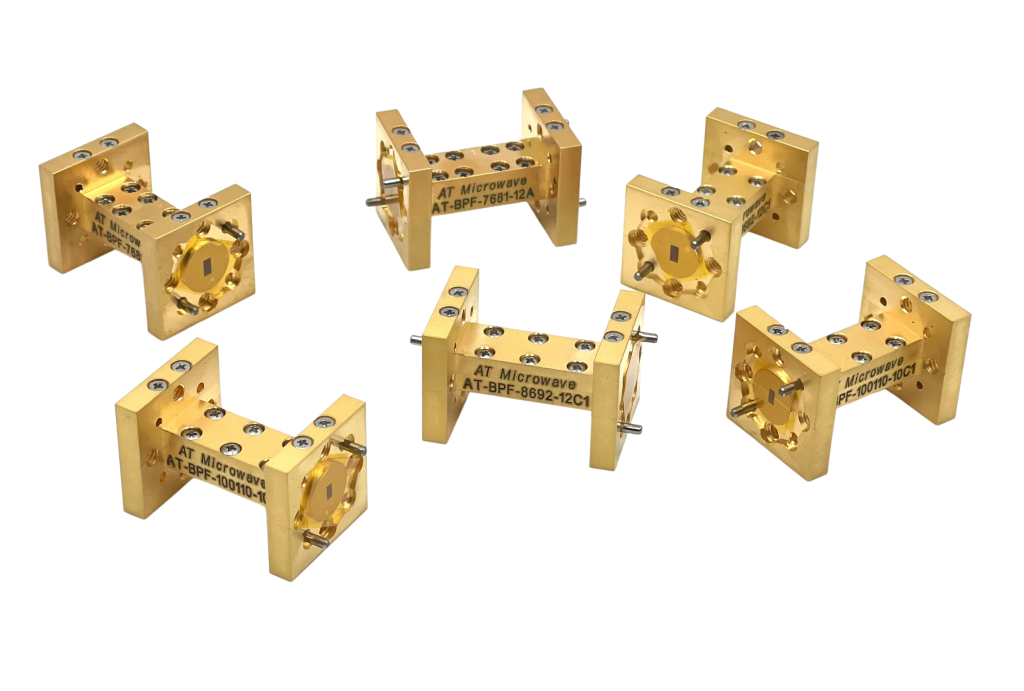

Waveguide filters engineered for frequencies up to 400 GHz provide critical signal conditioning capabilities for sub-THz communication and sensing systems. The product range encompasses bandpass, highpass, and lowpass filter configurations across WR-code waveguide standards, addressing emerging applications in E-Band, W-Band, D-Band, and beyond. These filters represent essential building blocks for advanced RF and millimeter-wave system architectures.
Technical Specifications
- Frequency Coverage: Bandpass filters spanning WR19 to WR3 waveguide bands; fullband configurations available from WR19 to WR5
- Highpass Filter Range: WR15 to WR5 waveguide standards
- Lowpass Filter Range: WR19 to WR6 waveguide standards
- Upper Frequency Limit: 400 GHz capability across select configurations
- Filter Types: Bandpass (including fullband variants), highpass, and lowpass topologies
- Custom Design Options: Application-specific filter configurations available upon request
Application Areas
- 5G/6G & Telecommunications: Sub-THz communication systems and point-to-point links requiring high selectivity and low insertion loss
- SATCOM: Payload filtering and signal isolation for satellite communication terminals
- Defense & Aerospace: RF signal processing for radar, imaging, and heterodyne receiver front-end filtering
- Research & Test: Millimeter-wave test platforms, amplifier output conditioning, and LNA input protection
The waveguide filter product line combines performance characteristics typical of passive waveguide components—including low insertion loss, high selectivity, and excellent VSWR performance—with manufacturing efficiency for cost-competitive deployment. Fullband bandpass variants eliminate the need for external matching structures, simplifying system integration for broadband applications.
Engineers requiring waveguide filter solutions can contact bq-microwave, European distributor for RF and mmWave components. Custom configurations and rapid prototyping capabilities ensure specialized filtering requirements are accommodated alongside standard product offerings.
