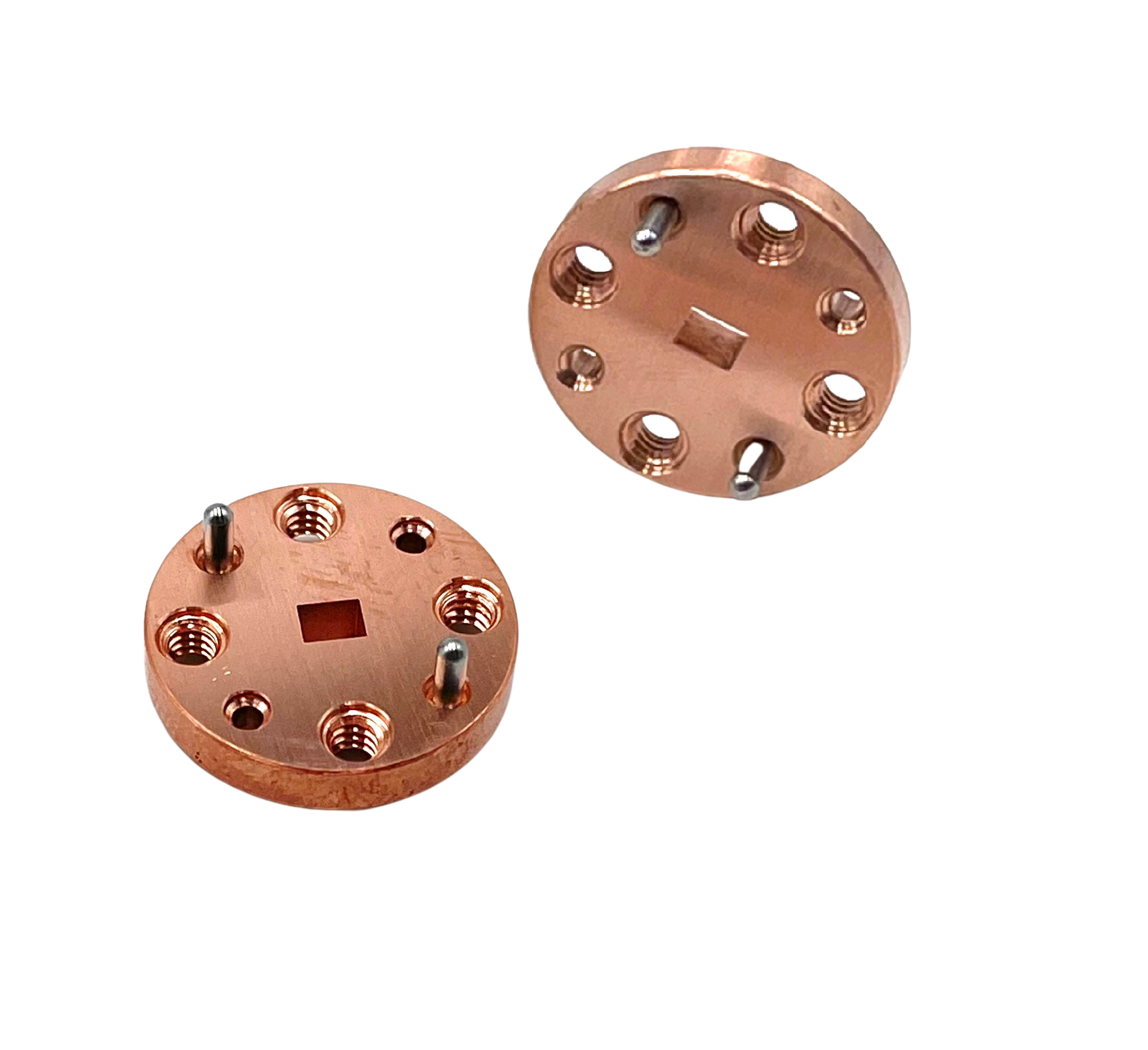

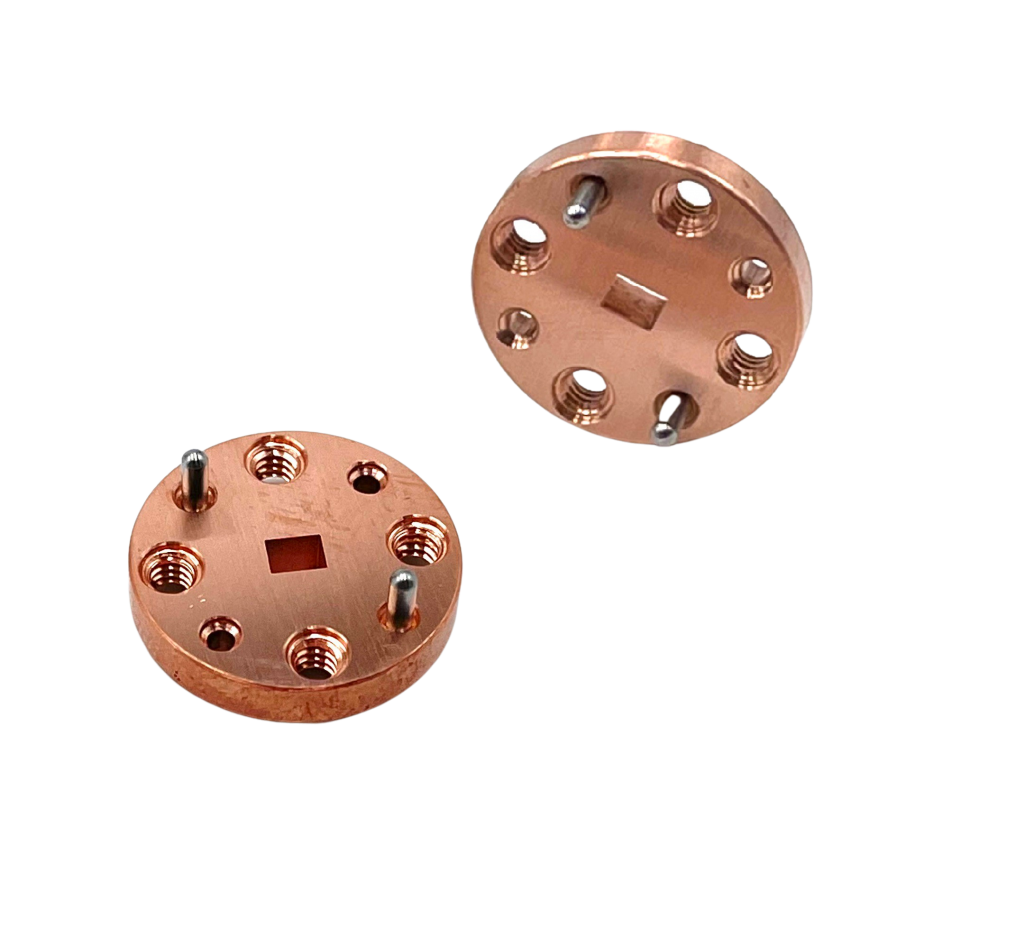

Waveguide Flanges up to 325 GHz
Waveguide flanges provide essential mechanical and electrical interconnections in RF and mmWave systems. bq-microwave offers a comprehensive range of waveguide flanges spanning from WR2300 down to WR3, covering frequencies up to 325 GHz. These precision-engineered components enable reliable, low-loss transitions between waveguide sections and external equipment in satellite communications, defense systems, test environments, and next-generation wireless infrastructure.
Technical Specifications
- Frequency range: DC to 325 GHz
- Waveguide configurations: WR2300 through WR3 (full range of standard WR-series designations)
- Materials: High-grade aluminum and copper alloys for thermal stability and conductivity
- Plating options: Multiple surface finishes available for electrical and environmental requirements
- Mechanical compatibility: Precision interfaces ensuring repeatable VSWR performance
- Custom configurations: Available upon request for specialized mounting requirements
Applications
- SATCOM Systems: Satellite ground stations and payload interconnects requiring stable, low-loss waveguide transitions
- Defense & Radar: Electronic warfare, radar systems, and secure communications across X-, Ku-, Ka-, and W-band
- 5G/6G Infrastructure: Backhaul and fronthaul networks utilizing mmWave and sub-THz frequency bands
- Test & Measurement: Laboratory setups for RF component characterization and system validation
- Aerospace: High-reliability interconnections in space-qualified and avionics environments
bq-microwave distributes waveguide flanges from AT Microwave and other manufacturers, ensuring compliance with military specifications (MIL-DTL) and commercial standards. Detailed technical documentation, including dimensional drawings and performance data, is available through our technical support team.
