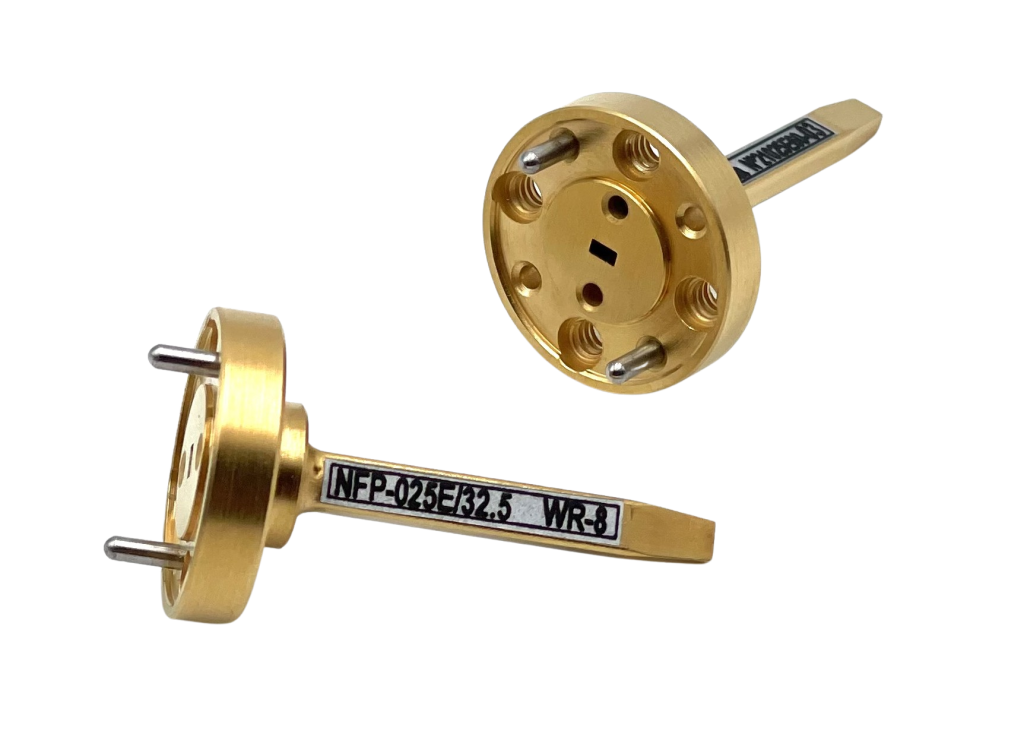

Waveguide Near Field Probes up to 500 GHz
Near field probe technology continues to play a critical role in RF and mmWave measurement applications. Waveguide near field probes spanning frequency ranges from WR1000 through WR2.2 enable engineers to conduct precise electromagnetic field measurements across the sub-terahertz spectrum up to 500 GHz.
These probes are engineered for field coupling analysis, antenna characterization, and component testing where direct contact measurement is required. The availability of both stock configurations and custom length solutions ensures flexibility for diverse laboratory and field deployment scenarios.
Technical Specifications
- Frequency coverage: WR1000 to WR2.2 waveguide standards
- Maximum operating frequency: 500 GHz
- Probe architecture: Waveguide-coupled design for efficient near field sampling
- Configuration options: Available in standard and custom length configurations
- Availability: Low-cost stock availability for immediate delivery
- Impedance matching: Optimized across supported frequency bands
- Compatibility: Compatible with standard measurement instrumentation and network analyzers
Applications
- Antenna Measurement: Near field radiation pattern characterization and gain assessment across mmWave and sub-THz frequencies
- Component Testing: RF and mmWave device validation, including filters, amplifiers, and integrated circuits
- 5G and 6G Development: Frequency band validation for emerging wireless communication standards
- SATCOM Systems: Satellite communication payload and antenna array diagnostics
- Defense and Aerospace: Radar and electronic warfare system characterization
- Material Characterization: Dielectric property measurement at sub-terahertz frequencies
- Electromagnetic Field Mapping: Spatial field distribution analysis in controlled measurement environments
The WR1000 to WR2.2 probe range provides continuous coverage of the critical frequency spectrum where modern high-speed communications, sensing, and detection systems operate. The standardized waveguide interface ensures seamless integration with existing test infrastructure while maintaining measurement repeatability and accuracy.
For engineers requiring rapid deployment of near field measurement capability, the stock inventory model eliminates procurement delays. Custom length options accommodate non-standard fixture geometries and specialized measurement setups. bq-microwave serves as European distributor for waveguide near field probes. For detailed specifications and application consultation, contact our team.
