Waveguide Straights and Bends up to 1700 GHz

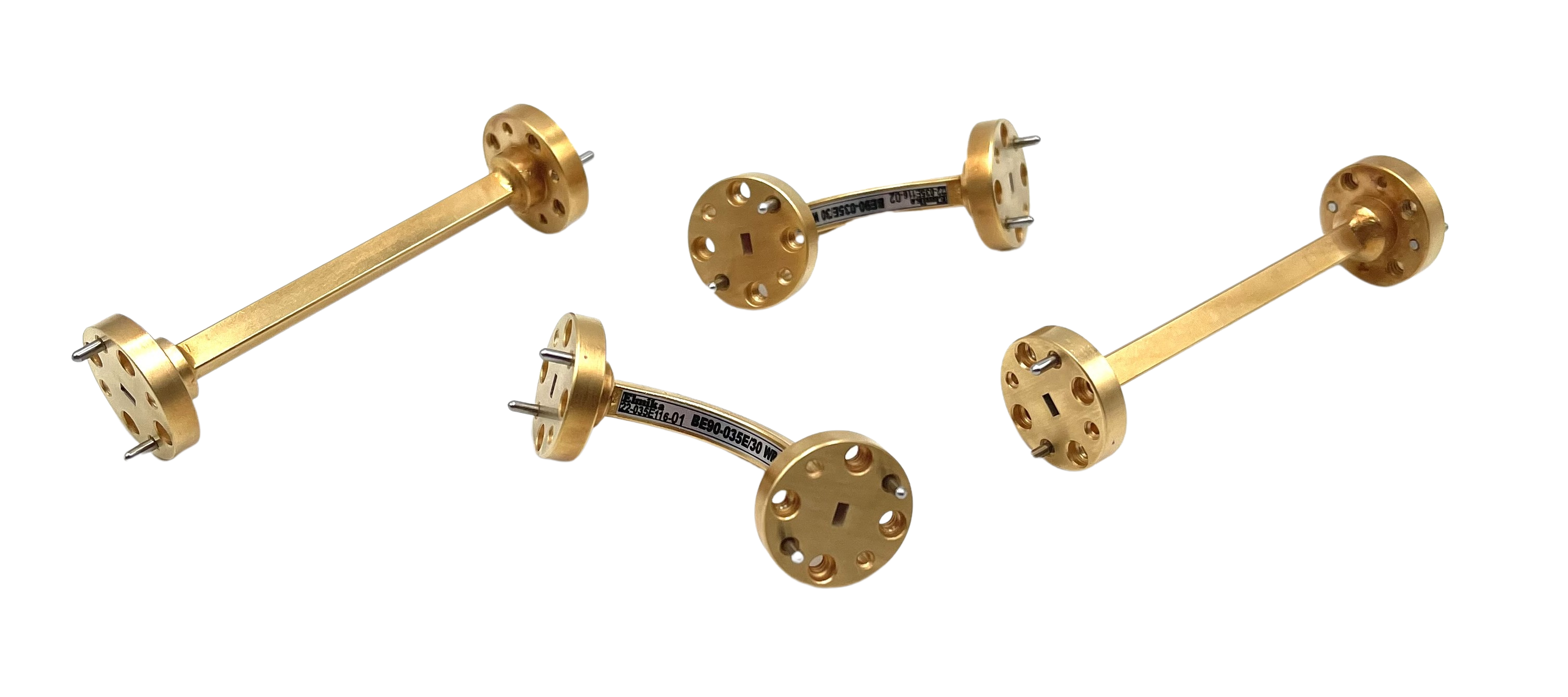

bq-microwave offers an expanded portfolio of waveguide straights and bends extending up to 1700 GHz, addressing critical needs in high-frequency RF and millimeter-wave system design. These components are engineered to maintain signal integrity across extremely demanding frequency ranges, from standard WR2300 down to WR1.5 waveguide dimensions.
The extended frequency coverage reflects growing requirements in next-generation communication systems, terahertz sensing applications, and research environments where conventional component limitations have constrained system performance.
Technical Specifications
- Waveguide Format Coverage: WR2300 through WR1.5
- Frequency Range (Straights): DC operation up to 1700 GHz
- Frequency Range (Bends): Up to 500 GHz operational bandwidth
- Bend Configurations: H-plane, E-plane, and split-block variants
- Custom Geometries: S-bend configurations for specialized routing
- Mechanical Precision: Maintained across millimeter and sub-millimeter waveguide dimensions
- VSWR Performance: Optimized for minimal signal reflection across specified frequency bands
Applications
- 6G and Terahertz Research: Sub-terahertz frequency exploration and propagation studies
- SATCOM Systems: High-frequency payload integration for next-generation satellite communications
- Defense and Aerospace: Precision waveguide routing in radar, electronic warfare, and reconnaissance systems
- Scientific Instrumentation: Terahertz spectroscopy, imaging, and materials characterization equipment
- Automotive Radar: mmWave sensor interconnect solutions for autonomous vehicle platforms
- Laboratory Test Environments: Component characterization and system validation at extreme frequencies
The availability of both standard and custom bend configurations—including split-block designs—enables system engineers to optimize integration within space-constrained applications. Split-block implementations reduce assembly complexity while maintaining electromagnetic performance, particularly beneficial in densely packed RF modules.
As frequencies push toward the terahertz spectrum, waveguide transmission remains essential for minimizing insertion loss and maintaining system efficiency compared to alternative transmission media. bq-microwave provides the passive RF infrastructure required for emerging high-frequency applications across telecommunications, sensing, and defense sectors. For detailed specifications and custom design inquiries, contact us directly.
