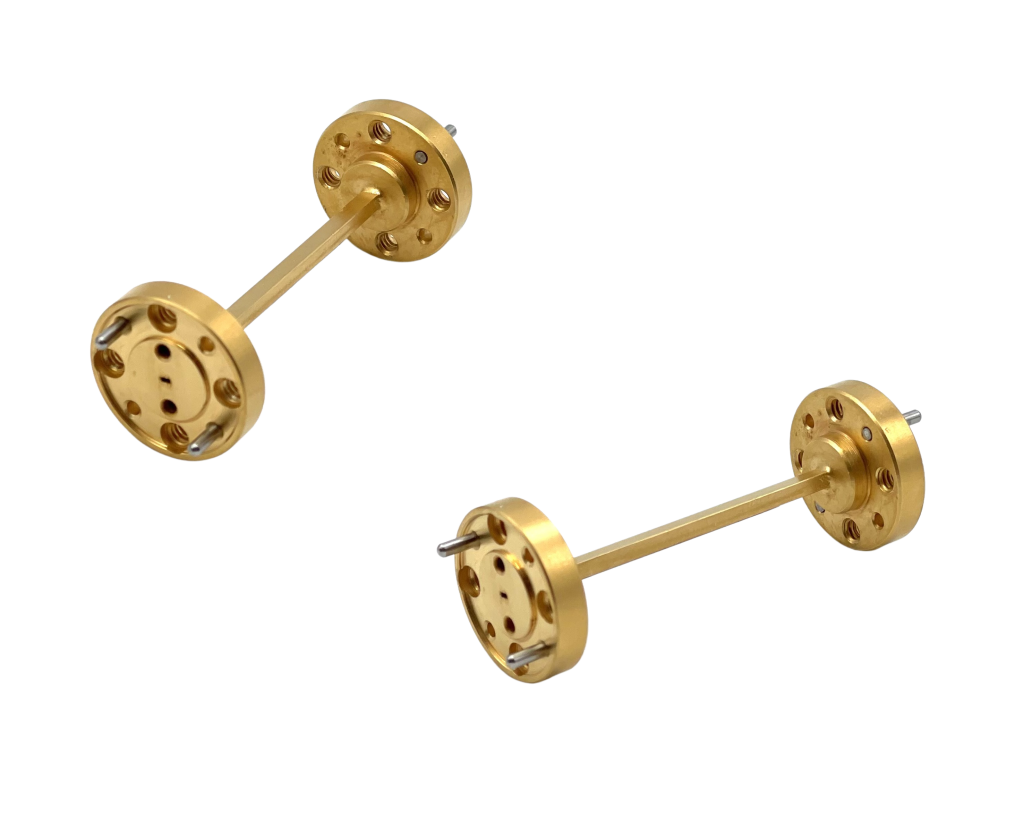

Waveguide Straights up to 1700 GHz for Advanced mmWave and Sub-Terahertz Systems
bq-microwave offers waveguide straight sections operating across an extended frequency range from low-frequency bands through 1700 GHz. These components address the growing demand for standardized and custom waveguide solutions in advanced RF, mmWave, and sub-terahertz applications, supporting next-generation communication systems and high-frequency measurement equipment.
The waveguide straights span from WR1.5 up to WR2300 designations, offering compatibility with both established and emerging frequency standards. Custom configurations are available upon request, enabling engineers to specify waveguides tailored to unique system requirements and integration constraints.
Technical Specifications
- Frequency coverage: DC-adjacent bands through 1700 GHz
- Waveguide designations: WR1.5 to WR2300
- Dimensions: Standard and custom configurations available
- Insertion loss: Low across entire frequency band
- VSWR: Controlled characteristics for impedance matching
- Manufacturing: Precision engineering for repeatable performance
- Interfaces: Compatible with standard connector interfaces and custom terminations
Applications
- 6G and advanced wireless systems: Supporting research and prototyping for next-generation communication standards
- Millimeter-wave and sub-terahertz imaging: Enabling high-resolution sensing and diagnostic systems
- SATCOM and aerospace systems: Meeting stringent frequency and environmental requirements
- Defense and radar systems: Providing reliable components for critical applications
- Laboratory and test environments: Supporting RF characterization and component validation
- High-frequency amplifier chains: Integration with LNA and HPA modules
The extension into the 1700 GHz range reflects industry-wide acceleration toward THz frequencies for communications, sensing, and spectroscopy applications. By offering straights in both standard WR-code dimensions and custom specifications, flexible system design is enabled without compromising performance or introducing unnecessary delays in development cycles.
Engineers and procurement specialists requiring waveguide straights for frequencies spanning from conventional microwave through 1700 GHz can contact bq-microwave directly for technical specifications, availability, and custom manufacturing options. As European distributor partnering with AT Microwave and other established manufacturers, bq-microwave ensures access to components meeting industry standards and delivering consistent electrical performance across demanding applications.
