WR10 Waveguide Ortho-Mode Transducer for 75-110 GHz

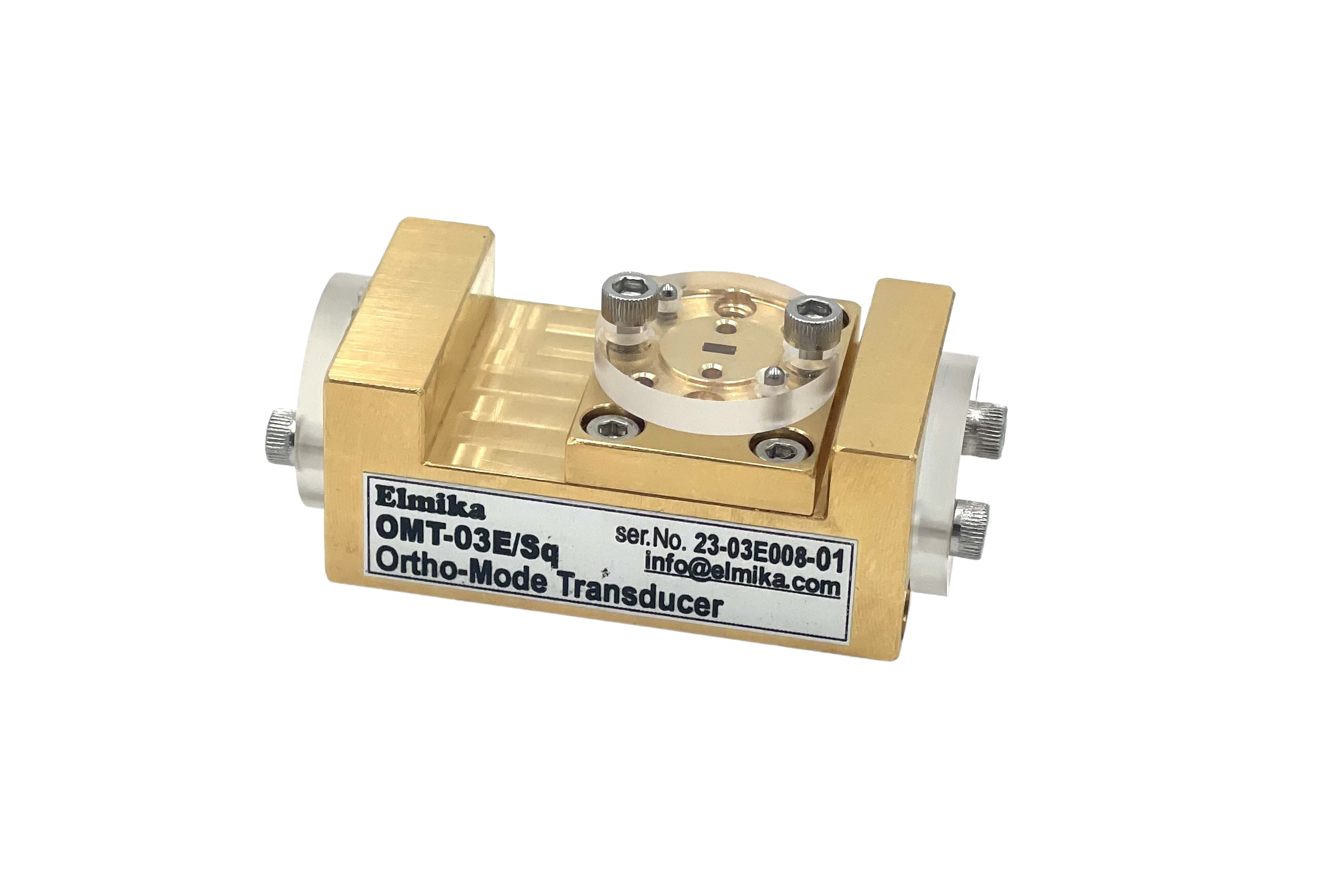

The WR10 Waveguide Ortho-Mode Transducer (OMT) is a critical component for dual-polarization signal separation and combining across the 75-110 GHz frequency band. This specialized RF device enables simultaneous transmission and reception of orthogonal polarization states, making it essential for modern mmWave communication systems and advanced sensing applications. The WR10 standard waveguide form factor ensures compatibility with existing infrastructure while providing robust mechanical and electrical integration.
Technical Specifications
- Frequency Range: 75-110 GHz
- Waveguide Standard: WR10 rectangular waveguide
- Operating Principle: Ortho-mode transduction with dual-polarization capability
- Polarization Separation: Independent H-plane and E-plane signal paths
- Insertion Loss: Minimal signal degradation across operating band
- Port Impedance: 50 Ohm waveguide interfaces
- Mechanical Interface: Standard WR10 waveguide flanges for direct integration
- Environmental: Sealed construction for field deployment
Applications
- Satellite Communications (SATCOM): Dual-polarization payload multiplexing and frequency reuse architectures
- 5G/6G Infrastructure: mmWave backhaul and fronthaul systems requiring polarization diversity
- Radar Systems: Simultaneous orthogonal polarization transmission for enhanced target discrimination
- Remote Sensing: Polarimetric imaging and atmospheric measurement platforms
- Defense Applications: Electronic warfare and secure communication systems
- Laboratory Testing: Characterization of polarization-dependent device performance
The WR10 Ortho-Mode Transducer delivers precise polarization control without significant insertion loss or phase imbalance, critical parameters for maintaining signal fidelity in cascaded RF systems. Integration with low-noise amplifiers and high-power amplifiers is straightforward due to standardized waveguide interfaces.
bq-microwave is a European distributor of high-performance waveguide components for mmWave applications. For technical documentation and custom integration guidance, please visit our contact page.
