WR10 Waveguide Power Amplifier 78-94 GHz

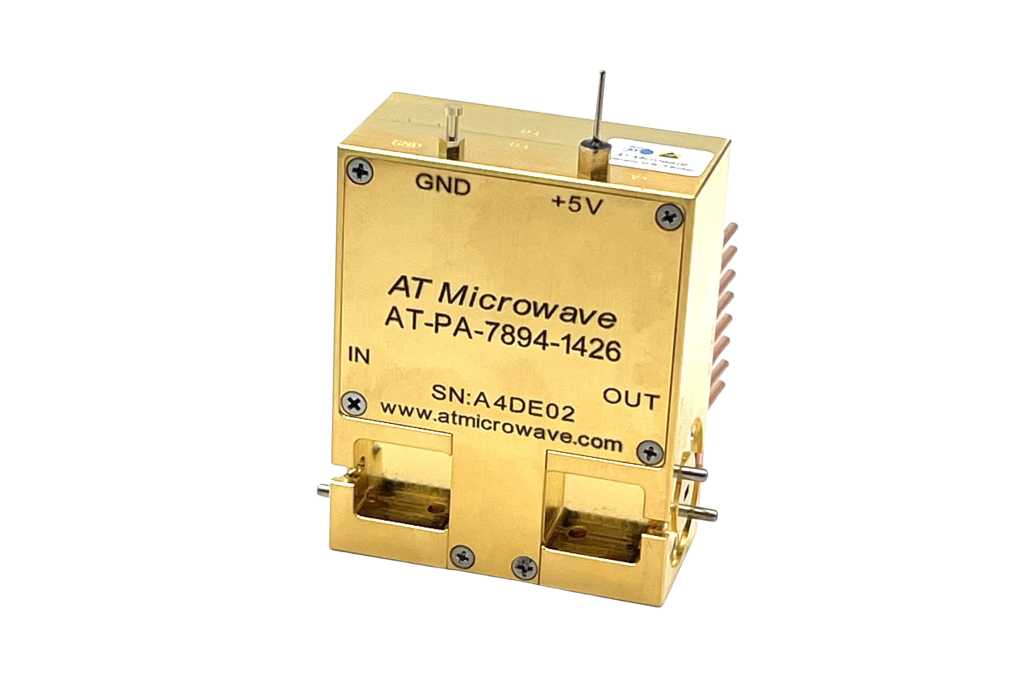

The AT-PA-7894-1426 is a W-Band waveguide power amplifier designed for demanding millimeter-wave applications across the 78-94 GHz spectrum. Featuring +26 dBm saturated output power and 14 dB small signal gain in a compact WR-10 interface, this amplifier delivers robust performance for radar systems, point-to-point communications, and precision measurement equipment.
Technical Specifications
- Frequency Range: 78-94 GHz (W-Band)
- Output Power (Psat): +26 dBm saturated
- Small Signal Gain: 14 dB
- Waveguide Interface: WR-10
- Housing Material: Copper with gold plating
- Weight: 221 g (excluding heatsink)
- Power Supply: Single +5V DC with integrated fixed gate supply
- Return Loss: Low input and output VSWR characteristics
Applications
- Radar Systems: High-power signal generation for advanced radar architectures and FOD detection
- Telecommunications: Point-to-point communication systems and RF over Fiber (RoF) transmission
- Test & Measurement: Precision instrumentation requiring stable W-Band amplification
- Imaging & Sensing: mmWave sensor platforms and imaging applications
Thermal Management
The AT-PA-7894-1426 features a thermally optimized design to ensure operational stability across the full frequency range. AT Microwave provides a standard cooling solution, with integration options for customer-specific heatsink and fan configurations for specialized deployments.
As European distributor for AT Microwave, bq-microwave offers the AT-PA-7894-1426 alongside complementary W-Band components including Low Noise Amplifiers and custom RF frontends. For technical inquiries, datasheets, or custom specifications, contact our team at info@bq-microwave.de.
