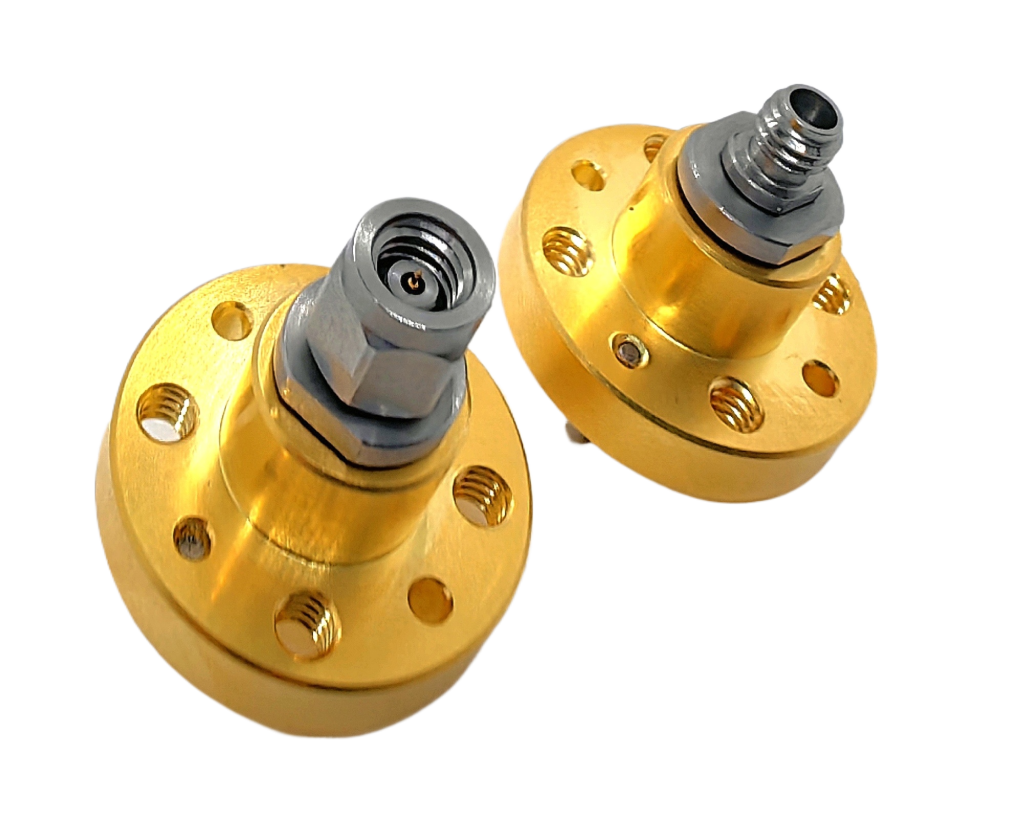

WR6 Waveguide to Coax Adapters for D-Band 110-170 GHz
WR6 Waveguide to Coax Adapters enable reliable signal transition between waveguide and coaxial transmission systems across the D-Band frequency spectrum from 110 to 170 GHz. These adapters support high-frequency applications in next-generation wireless infrastructure, laboratory measurement systems, and mmWave test setups where signal integrity is critical.
The adapters feature an end-launch waveguide interface and deliver controlled insertion loss across their operational bandwidth, making them suitable for both fixed frequency and broadband measurement scenarios in millimeter-wave and sub-terahertz systems.
Technical Specifications
- Frequency Range: 110-170 GHz (110-145 GHz optimized, usable to 170 GHz)
- Insertion Loss: 1 dB at 110-145 GHz; 2.5 dB at 145-170 GHz
- Coax Connectors: 0.8mm male or female configurations
- Power Handling: 2W CW
- Interface Type: End-launch waveguide design
Application Areas
- 5G/6G Development: System integration and component testing for next-generation wireless infrastructure
- Millimeter-Wave Testing: Laboratory and manufacturing measurement setups in D-Band frequencies
- SATCOM & Defense: Frequency characterization and RF component validation in satellite and radar systems
- Research Applications: Sub-terahertz signal analysis and VSWR evaluation in precision measurement chains
The controlled insertion loss profile enables accurate signal transmission for LNA chains, HPA systems, and precision applications where signal fidelity is paramount. Competitive pricing and expedited procurement timelines support developers managing deployment schedules in 5G infrastructure and 6G research initiatives.
Engineers requiring WR6 Waveguide to Coax Adapters or complementary D-Band component solutions can contact bq-microwave directly at info@bq-microwave.de. The technical team provides tailored quotations and application guidance for system-specific requirements spanning telecommunications, Defense, SATCOM, and research domains.
