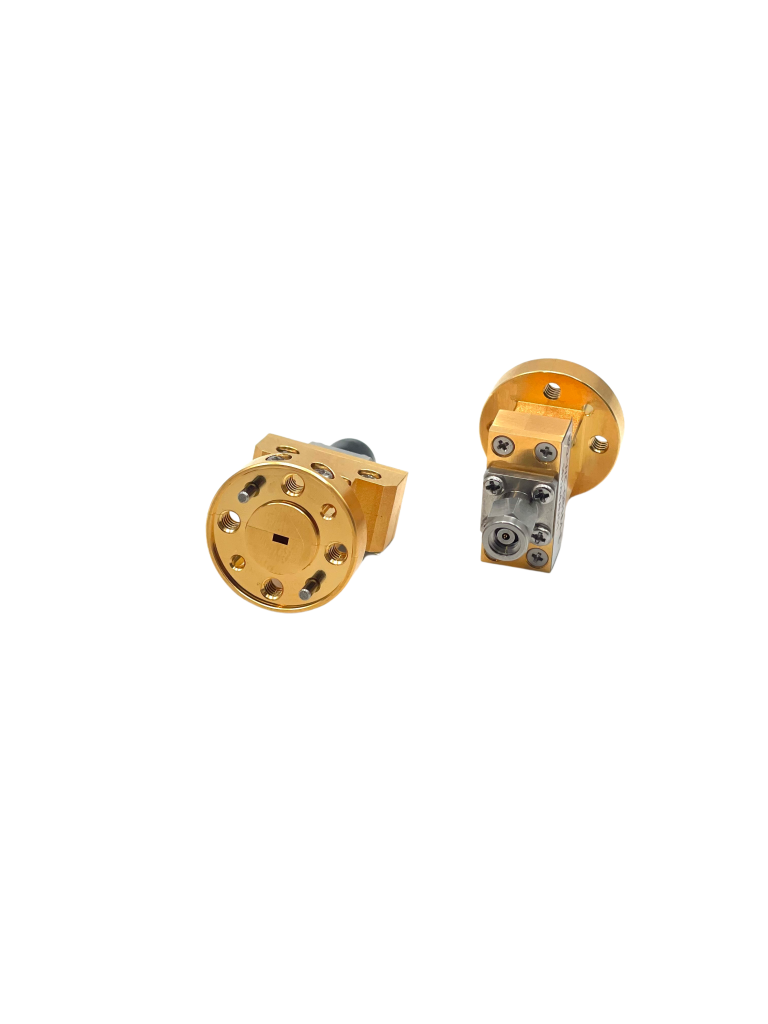

WR8 Waveguide to Coax Adapter for W-Band Applications
The WR8 Waveguide to Coax Adapter provides a reliable transition solution for millimeter-wave systems operating in the W-band spectrum. This adapter bridges waveguide and coaxial transmission technologies, enabling efficient signal routing in complex RF architectures from 85 to 125 GHz. The compact design ensures seamless integration while maintaining excellent electrical performance and minimal insertion loss.
Technical Specifications
- Frequency Range: 85-125 GHz (W-Band)
- Waveguide Standard: WR8
- Coaxial Connector: 1mm male or female options
- Power Handling: Up to 5W maximum
- Transmission Technology: Waveguide-to-coax transition
Applications
- 5G/6G & Telecommunications: Millimeter-wave signal processing for next-generation wireless infrastructure
- SATCOM: W-band connectivity for commercial and government satellite communication systems
- Radar & Sensing: Automotive and industrial mmWave radar applications
- Test & Measurement: Laboratory integration for component characterization and network analysis
- Defense & Aerospace: High-reliability signal distribution in critical RF environments
As a European distributor, bq-microwave offers an extensive range of waveguide-to-coax adapters from WR2300 through WR8, covering diverse frequency bands and application requirements. For inquiries regarding alternative waveguide standards or detailed specifications, please contact our technical team.
Product Data Sheet
Technical specifications as PDF
